KM095C-040-3L - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Male - Standard

Standard Male Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 39.88 mm
  • Thread Length 25.4 mm
  • Colour Black
  • Hub Diameter (C) 16.00 mm
  • Hub Length (D) 7.87 mm
  • Knob Height (B) 24.89 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® RST-139
  • RST139
View full details

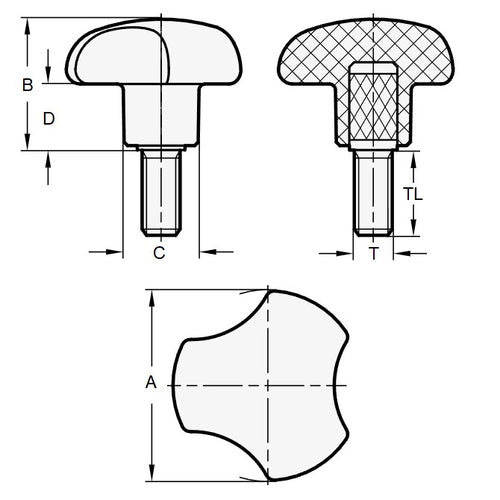

KM095C-040-3LDiagramKM095C-040-3LImage
