KM095C-040-NG - Datasheet

MBA

Category Information

Knobs - Ball - Male Threaded - Novo-Grip

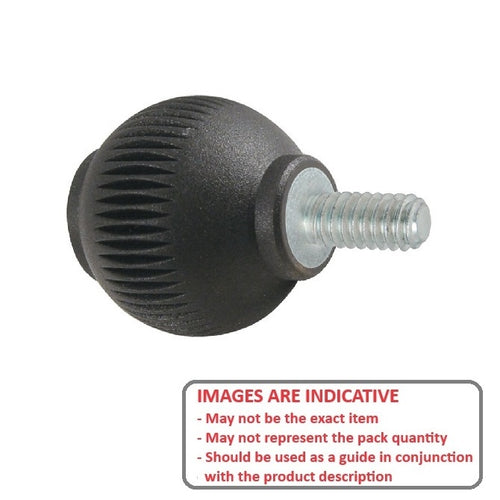

Novo-Grip Male Threaded Ball Knobs. Ergonomic Shape for easy gripping

  • An expanded range may be available on special order. Please enquire.
  • Unique styling for a very distinctive look
  • Belt fluting for non-slip gripping
  • Black thermoplastic with steel or stainless steel studs

Product Data

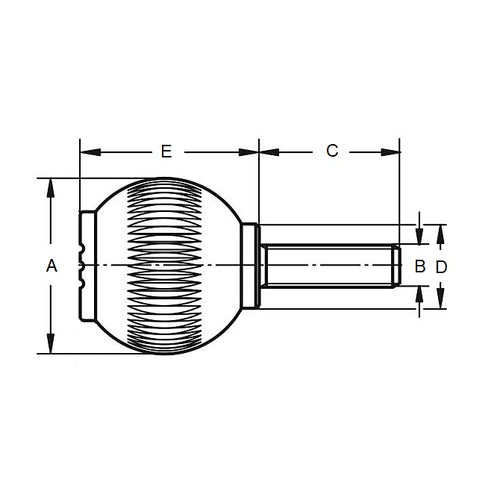

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 39.88 mm
  • Thread Length (C) 20.1 mm
  • Base Diameter (D) 19.05 mm
  • Body Height (E) 42.42 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 6503K63
  • Reid Tool® GK-470
  • GK470
