SK095C-076-SK-S4 - Datasheet
Brighton Best
Category Information

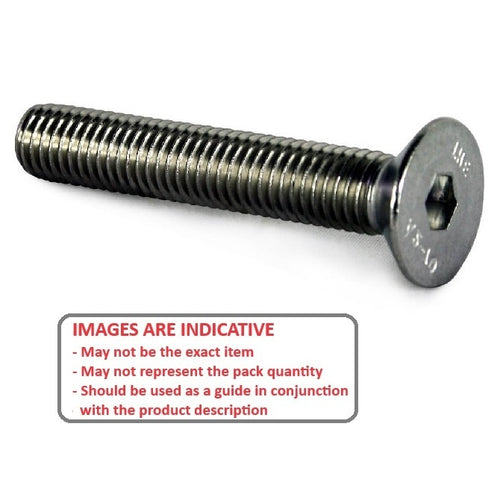

Screws - Countersunk - Socket - 304 Stainless304 Stainless Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC - Stainless Steel
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- ISO 10642
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
- Thread Size (C) : 3/8-16 UNC (9.53mm)
- Overall Length (L)
76.2
mm
+ 0.0 / - 1.55
(Equiv. 3 in.) - Material 304 Stainless
- Head Diameter (A) 19.8 mm
- Max Head Height 5.9 mm
- Minimum Thread Length (l) Not Specified mm
- Hex Key (s) 5.56 (7/32) mm
- Countersunk Angle 82 °
- Pitch 1.588 mm
- Threads Per Inch 16 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 712234
- 92210A636
