Miniature Bearings Australia
SC095C-032-H-N - Datasheet
MBA
Category Information

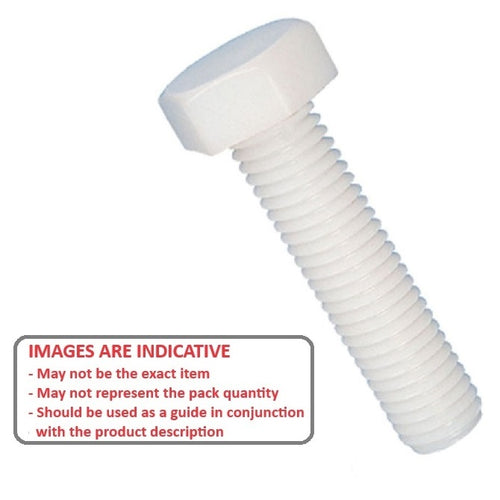

Screws - Hex Head - NylonNylon Hex Head Screws. UNC - UNF
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 3/8-16 UNC (9.53mm)
- Thread Length (L)
31.8
mm
(Equiv. 1.252 in.) - Material Nylon (Zytel 101)
- Max Head Diameter 14.28 mm
- Max Head Height 7.49 mm
- Head Type Hex Head - No Slots
- Pitch 1.588 mm
- Threads Per Inch 16 TPI
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91244A626
- A 9P54-371620
- A9P54-371620
- A9P54371620
