Miniature Bearings Australia
NT095C-QK-CB - Datasheet
MBA
Category Information

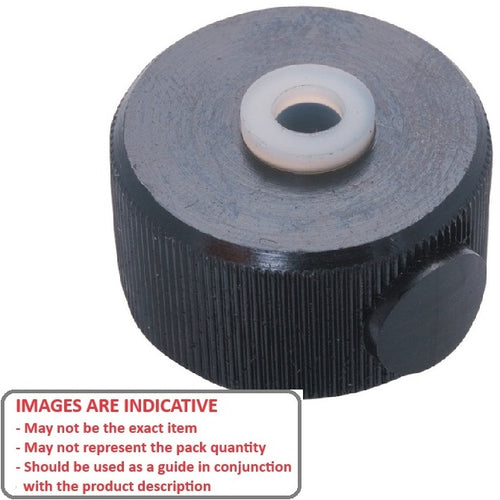

Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

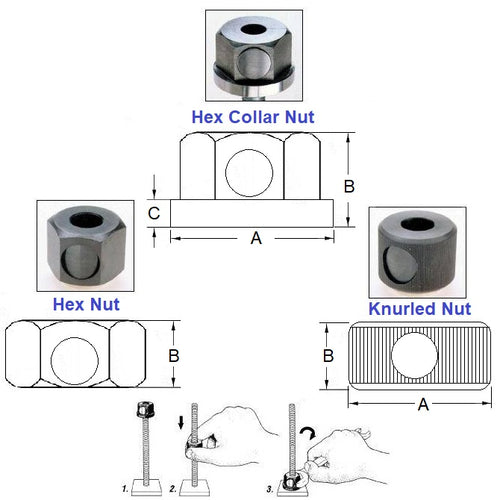

- Diameter (A)
19.05
mm
(Equiv. 0.75 in.) - Type Knurled Round
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BCL185
- BCL-185
