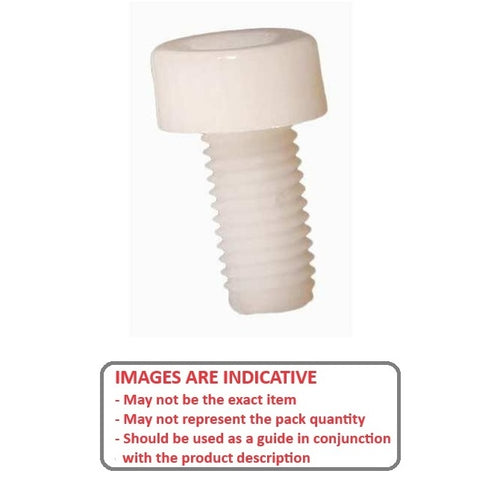

SC095C-025-C-SK-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size (C) : 3/8-16 UNC (9.53mm)
• Thread Length (L) 25.4 mm
  (Equiv. 1 in.)
• Material Nylon (Zytel 101)
• Head Length (B Max.) 9.5 mm
• Head Diameter (A Max.) 14.2 mm
• Drive Depth (E) 4.62 mm
• Shank Diameter (C) 9.34 - 9.53 mm
• Hex Key (D) 7.94 (5/16) mm
• Pitch 1.588 mm
• Threads Per Inch 16 TPI
• Min thread Length 25.4 mm
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 95868A826
• A9M52371616
• A9M52-371616
• A 9M52-371616
