SS095C-0254-AS-BT - Datasheet
MBA
Category Information

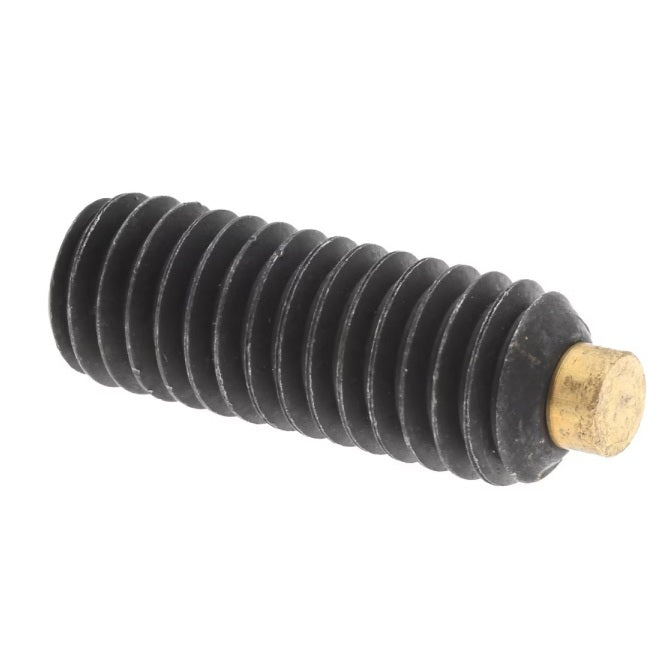

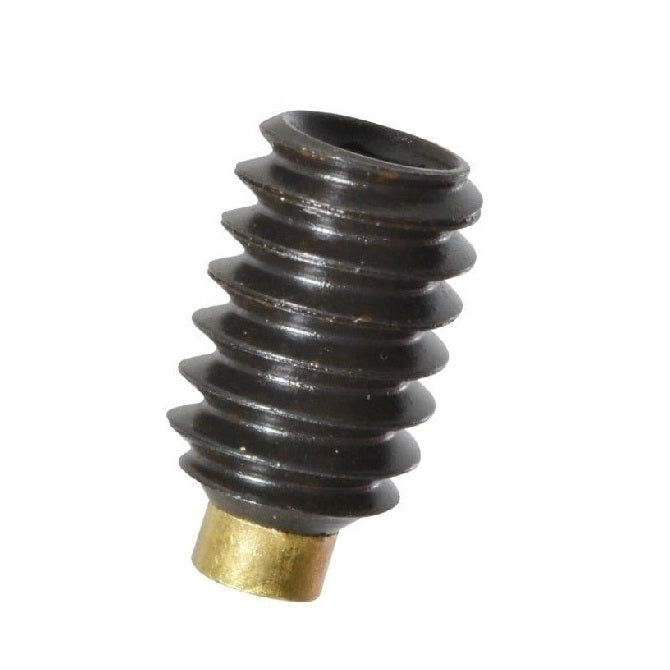

Socket Set Screws - Brass Tipped - Alloy SteelAlloy Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.
- Socket driven grub screws that uses a brass tip to prevent damage to the shaft it secures.
- Brass tip provides a gentler contact point than a pointed or cup-point set screw, making it ideal for applications like securing gears to shafts where protecting the component's surface from marring or wear is crucial.
- Often used in precision mechanical and electrical assemblies where a secure, non-damaging hold is required.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)
- Thread Length (L)
25.4
mm
(Equiv. 1 in.) - Type Brass Tipped
- Overall Length (L + L1) 27.8 mm
- Tip Diameter (d) 4.8 mm
- Tip Length (L1) 2.4
- Pitch 1.588 mm
- Threads Per Inch 16 TPI
- Finish Black Oxide
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91381A624
- BTS255
- BTS-255
