NT095C-QC-CB - Datasheet
MBA
Category Information
Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data

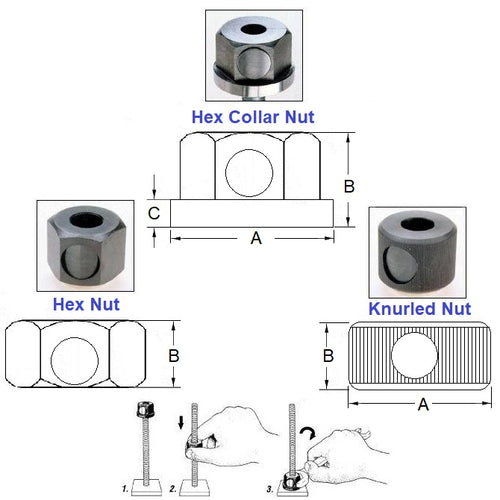

- Thread Size : 3/8-16 UNC (9.53mm)
- Across Flats (A/F)
25.4
mm
(Equiv. 1 in.) - Height (B) 30.14 mm
- Flange Thickness (C) 4.740 mm

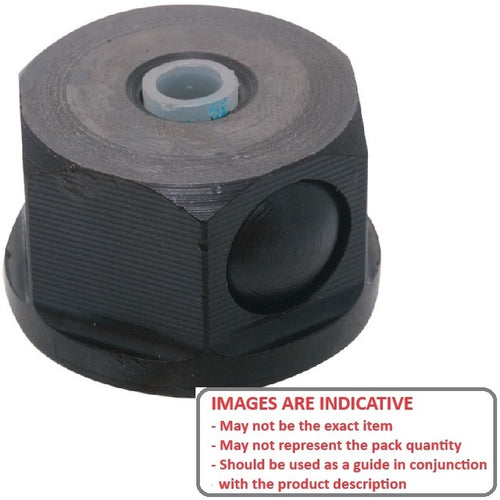

- Type Hex with Collar
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BCL-140
- BCL140
