THS095C-025-W-CS-WF - Datasheet
MBA
Category Information

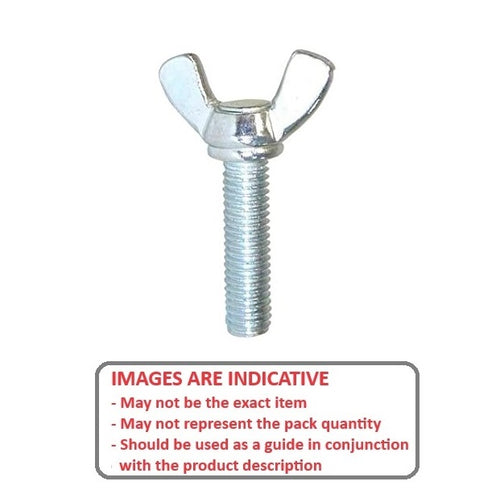

Screws - Thumb - Wing - Washer FaceWasher Face Wing Thumb Screws. Wing head malleable iron screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data

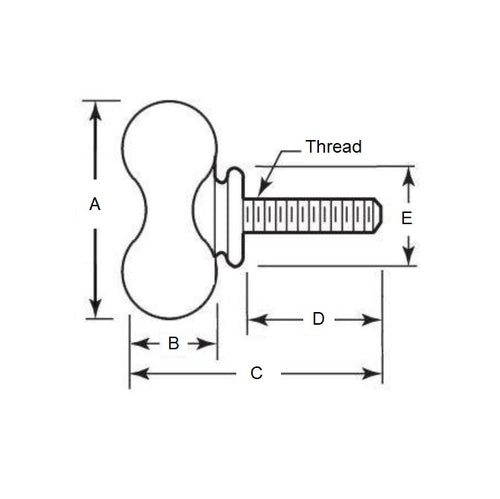

- Thread Size : 3/8-16 UNC (9.53mm)
- Thread Length (D) 25.40 mm
- Overall Length (C) 50.80 mm
- Head Diameter (A) 36.51 mm
- Head Height (B) 25.40 mm
- Finish Tumbled
- Shoulder Diameter (E) 19.05 mm
- Material Malleable Iron
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Reid Tool® MIT-99
- MIT99
