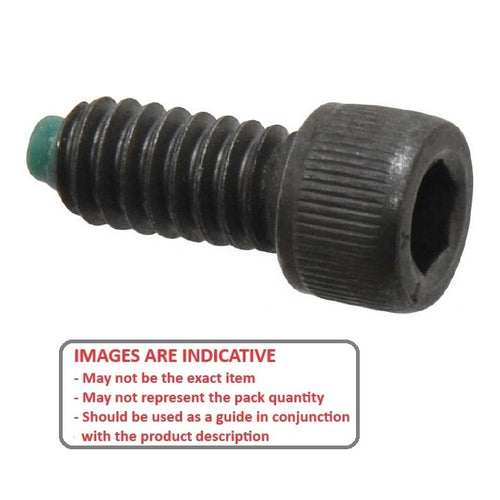

SC095C-025-C-SK-C-NT - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

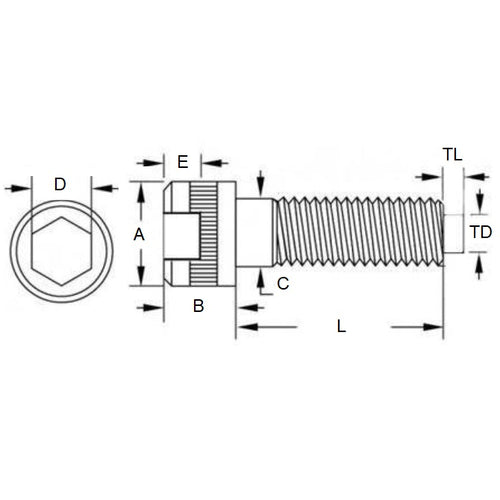

• Thread Size (C) : 3/8-16 UNC (9.53mm)
• Thread Length (L) 25.4 mm
  (Equiv. 1 in.)
• Tip Diameter 4.80 mm
  (Equiv. 0.189 in.)
• Tip Length 2.30 mm
• Head Length (B Max.) 9.53 mm
• Head Diameter (A Max.) 14.27 mm
• 9.34 - 9.53
• Material Steel Alloy

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• TNT255
• TNT-255
