SCP095C-022-S4 - Datasheet

MBA

Product Data

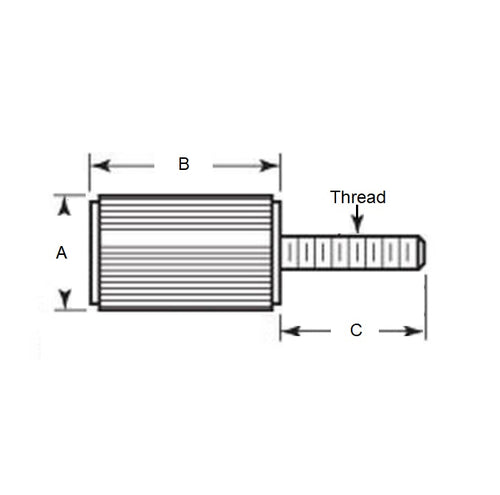

• Thread : 3/8-16 UNC (9.53mm)
• A 22.22 mm
  (Equiv. 0.875 in.)
• B 26.970 mm
  (Equiv. 1.062 in.)
• C 19.050 mm
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 93585A390
• LPS-150
• LPS150
