Miniature Bearings Australia
EZL-095C-160-170-C - Datasheet
MBA
Category Information

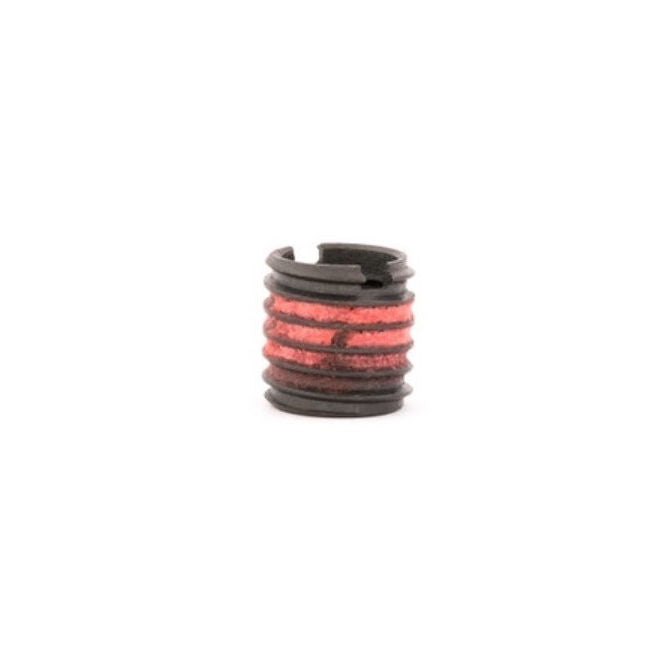

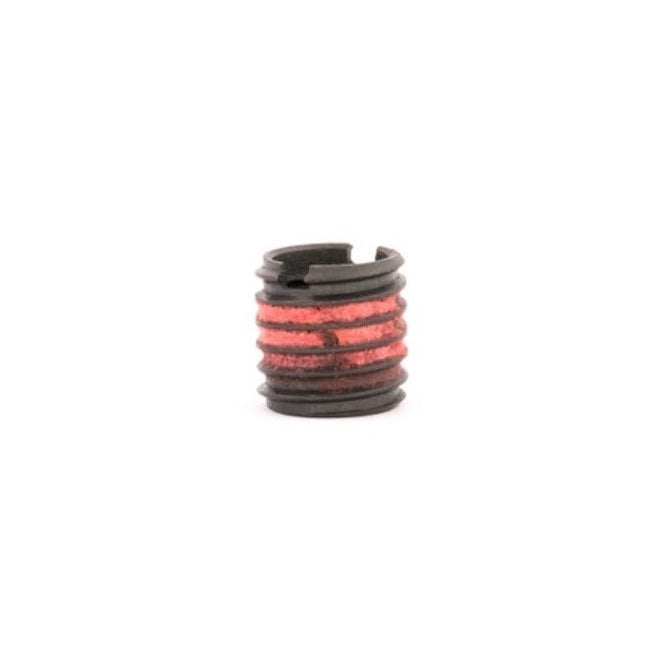

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF
Product Data
- Internal Thread : 3/8-16 UNC (9.53mm)
- Length
17.00
mm
(Equiv. 0.669 in.) - External Tap Size 16.000mm (M16.0 x 2.0)
- Tapping Hole Size 14.00 mm
- Drive Tool 500-5
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 550-6
- 97224A230
- 5506
