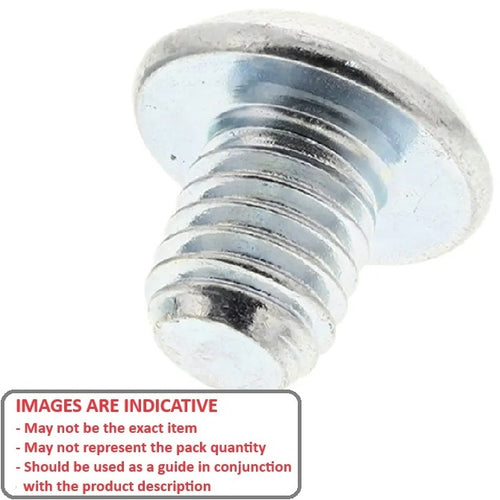

SC095C-016-B-SK-CZ - Datasheet
Brighton Best
Category Information
Screws - Button - Socket - Zinc PlatedZinc Plated Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
- Thread Size (C) : 3/8-16 UNC (9.53mm)
- Thread Length (L)
15.9
mm
(Equiv. 0.626 in.) - Material Zinc Plated Steel
- Max Head Diameter 16.7 mm
- Max Head Height 5.0 mm
- Hex Key (D) 5.56 (7/32) mm
- Pitch 1.588 mm
- Threads Per Inch 16 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 874169
- 91306A292
