SS095C-0127-AS-CP - Datasheet

MBA

Product Data

• Thread Size : 3/8-16 UNC (9.53mm)

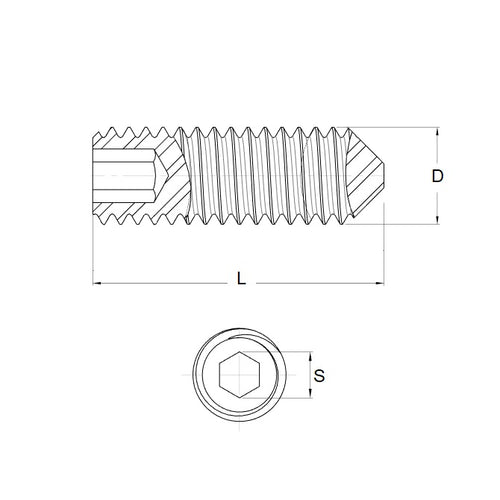

• Thread Length (L) 12.7 mm
  (Equiv. 0.5 in.)

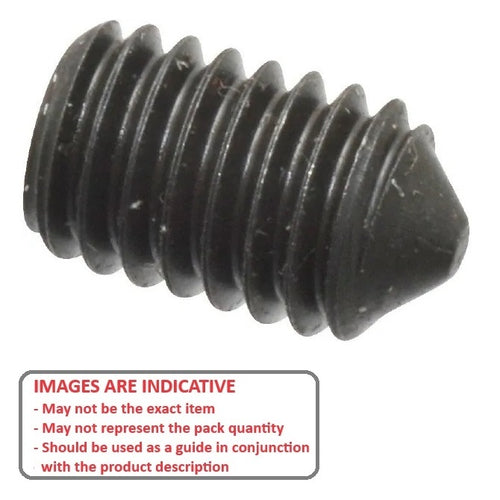

• Type Cone Point
• Hex Key Size 4.76 (3/16)
• Pitch 1.588 mm
• Threads Per Inch 16 TPI
• Point Angle 90 ° +/- 2
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92695A503
• BRB121169P
• BRB-121169P
