EB-24RS - Datasheet

MBA

Category Information

Eye Bolts - Bent - Steel

Steel Bent Eye Bolts. Not recommended for lifting.

  • Carbon steel zinc plated.
  • Complete with nut.
  • Rolled threads.

Product Data

  • Thread : 3/8-16 UNC (9.53mm)
  • Overall Length 76.200 mm
    (Equiv. 3 in.)
  • Shank Length 38.100 mm
    (Equiv. 1.5 in.)
  • Thread Length 9.525 mm
  • Eye Inside Diameter 9.525 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    View full details

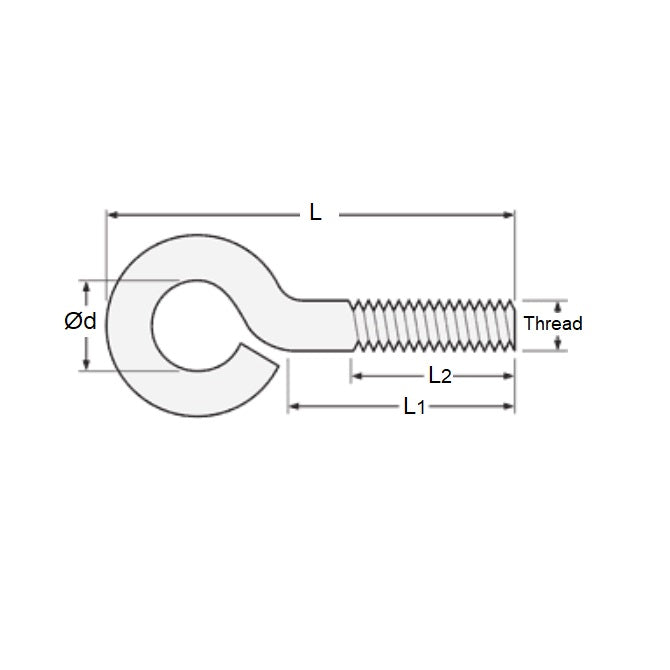

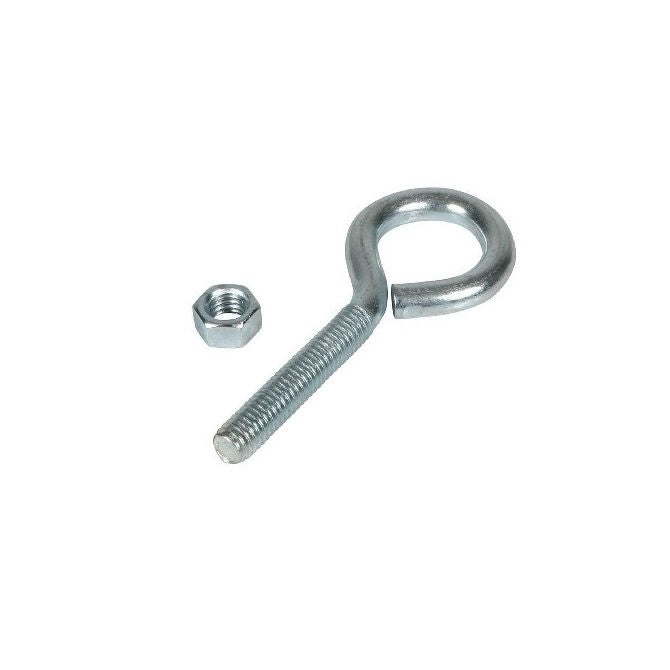

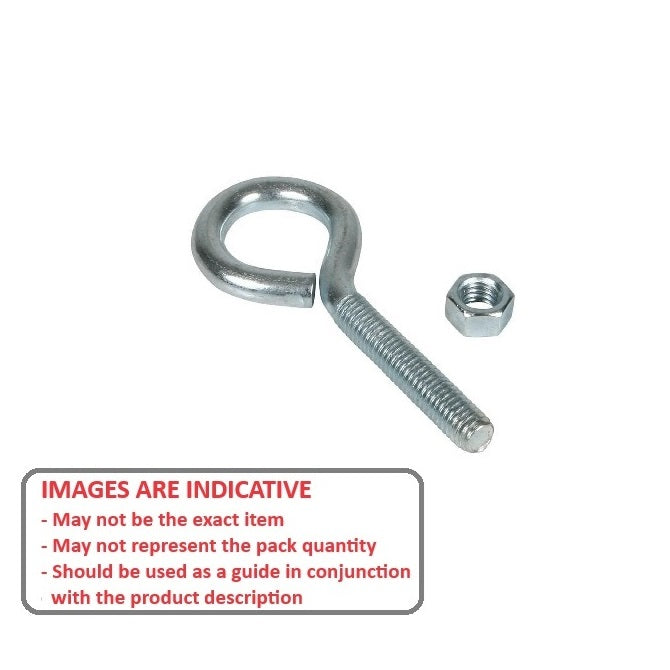

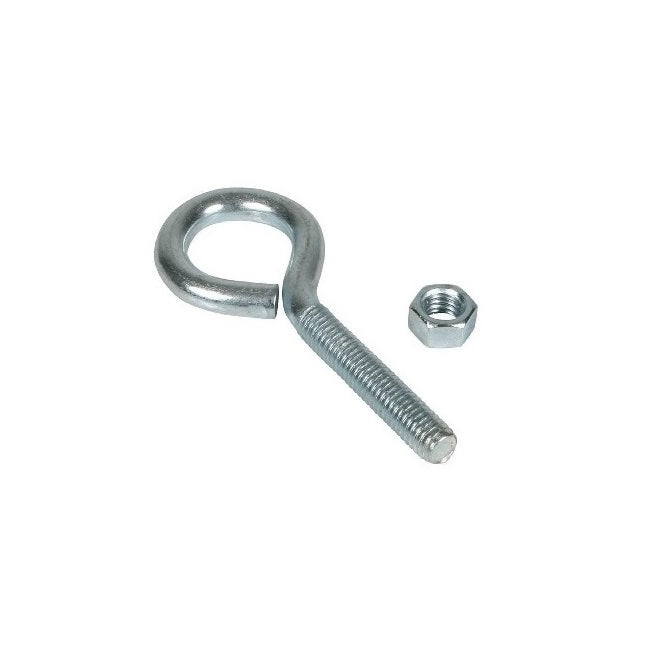

    EB-24RSDiagramEB-24RSImage
