CHE-116RS - Datasheet

MBA

Category Information

Eye Bolts - Partial Threaded Shank - Shouldered - Stainless Steel

Stainless Steel Shouldered Partial Threaded Shank Eye Bolts. 316 Stainless Steel

  • Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Shank Length 63.500 mm
    (Equiv. 2.5 in.)
  • Eye Inside Diameter 19.050 mm
    (Equiv. 0.75 in.)
  • Rated Capacity 544 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 3032T43
    View full details

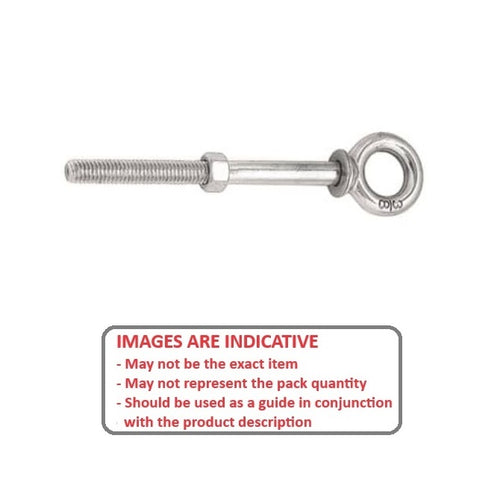

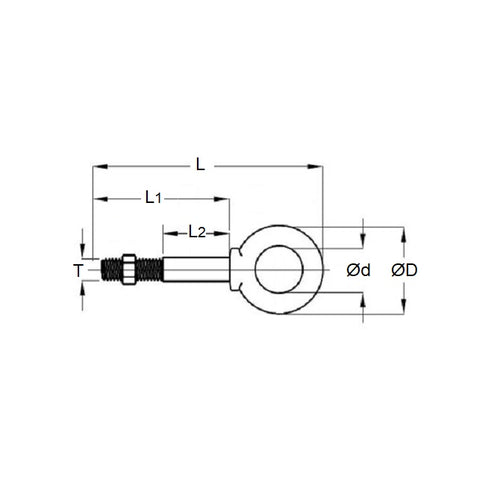

    CHE-116RSDiagramCHE-116RSImage
