SPANC-095C-041 - Datasheet

MBA

Category Information

Spring Anchors - Steel

Steel Spring Anchors. An economical way to secure the ends of extension springs, and provide easy adjustment.

  • C-12114 Steel with Black Oxide Finsh

Product Data

  • Thread : 3/8-16 UNC (9.53mm)

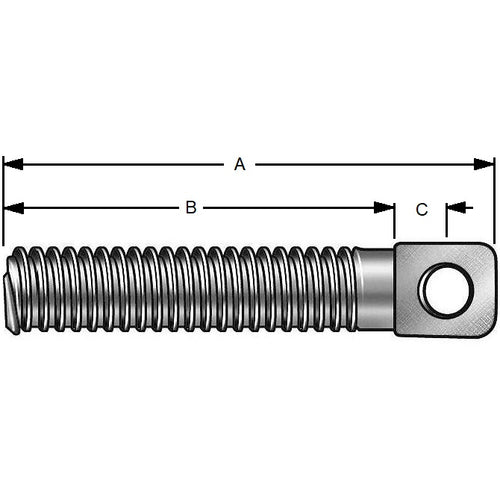

  • Overall Length (A) 41.148 mm
    (Equiv. 1.62 in.)
  • Thread Length (B) 28.575 mm
    (Equiv. 1.125 in.)
  • Thread to Centre Eye (C) 4.572 mm
  • Hole Size 4.318 mm
  • Load 378 Kg
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9634K25
  • CSA90RS
View full details

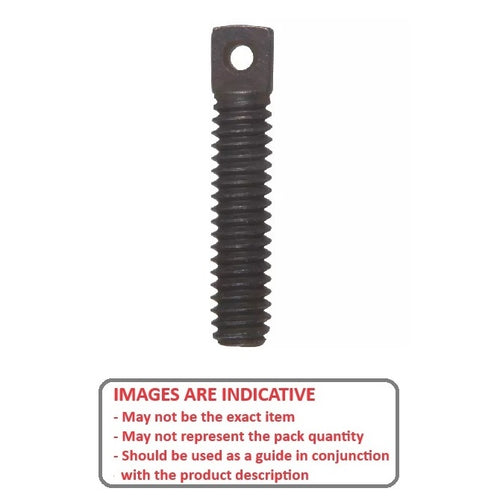

SPANC-095C-041DiagramSPANC-095C-041Image
