CHE-16RS - Datasheet
MBA
Category Information

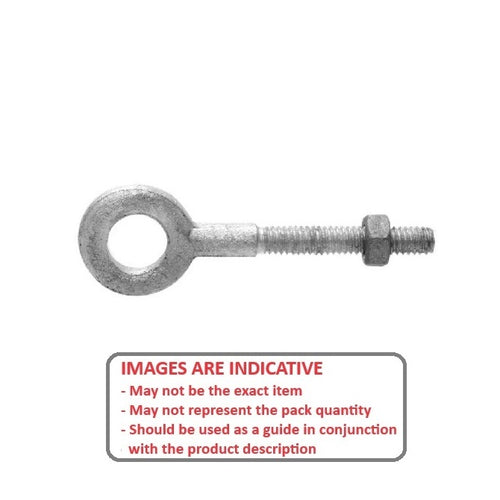

Eye Bolts - Partial Threaded Shank - Plain - Carbon SteelCarbon Steel Plain Partial Threaded Shank Eye Bolts. Hot galvanised finished steel with machine thread.
- Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.
Product Data

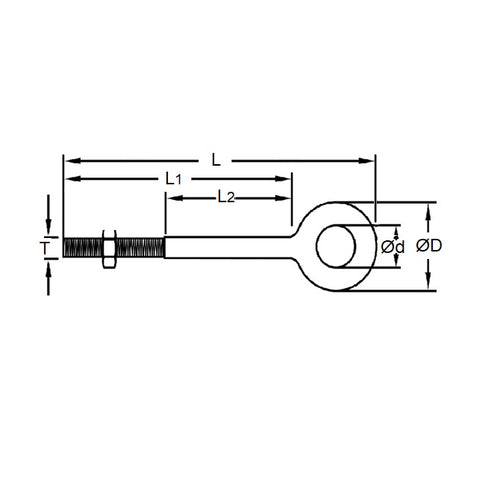

- Thread Size : 3/8-16 UNC (9.53mm)
- Shank Length
203.200
mm
(Equiv. 8 in.) - Eye Inside Diameter
19.050
mm
(Equiv. 0.75 in.) - Rated Capacity 544 Kg
Product Compliance and Data
Additional Resources
Cross References
- 3016T38
