BEB-1630RS - Datasheet

MBA

Category Information

Eye Bolts - Bent - Stainless Steel

Stainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.

  • Complete with nut.
  • Rolled threads.

Product Data

  • Thread : 3/8-16 UNC (9.53mm)
  • Overall Length 139.700 mm
    (Equiv. 5.5 in.)
  • Shank Length 101.600 mm
    (Equiv. 4 in.)
  • Thread Length 63.500 mm
  • Eye Inside Diameter 19.050 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 9489T75
    View full details

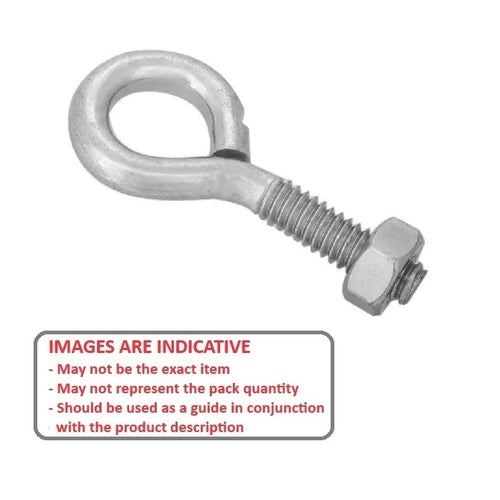

    BEB-1630RSDiagramBEB-1630RSImage
