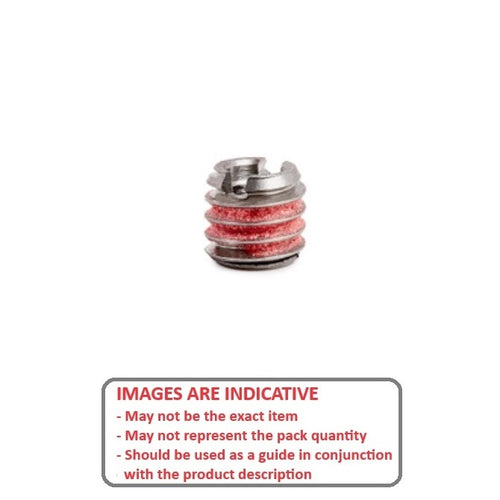

EZL-095C-143C-131-S3 - Datasheet
MBA
Category Information
Thread Repair - Inserts - EZ-Lok - Solid Stainless SteelSolid Stainless Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required. Simply drill and tap the hole to suit the external thread.
- Install with a bolt and wrench
- Metric, UNC and UNF
Product Data
- Internal Thread : 3/8-16 UNC (9.53mm)
- Length
13.08
mm
(Equiv. 0.515 in.) - External Tap Size 9/16-12 UNC (14.29mm)
- Tapping Hole Size 12.30 mm
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 303-6
- 90247A014
- 3036
