SC095W-089-HS-CZ - Datasheet
MBA
Category Information

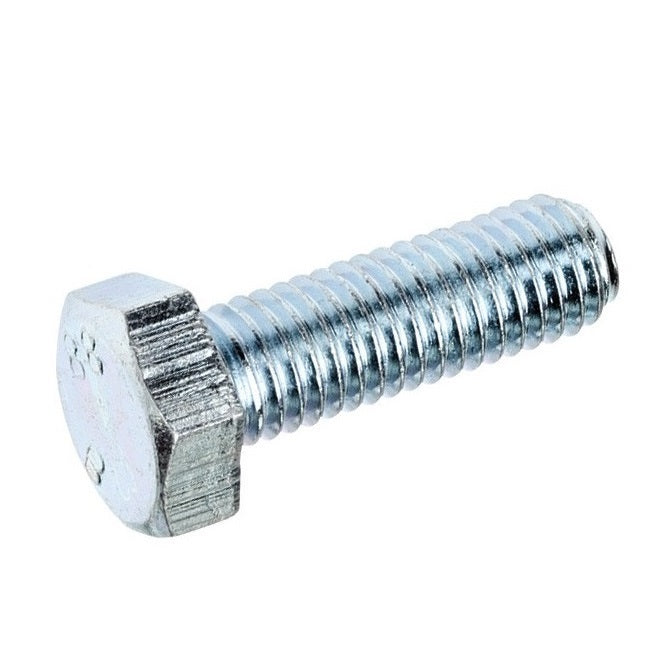

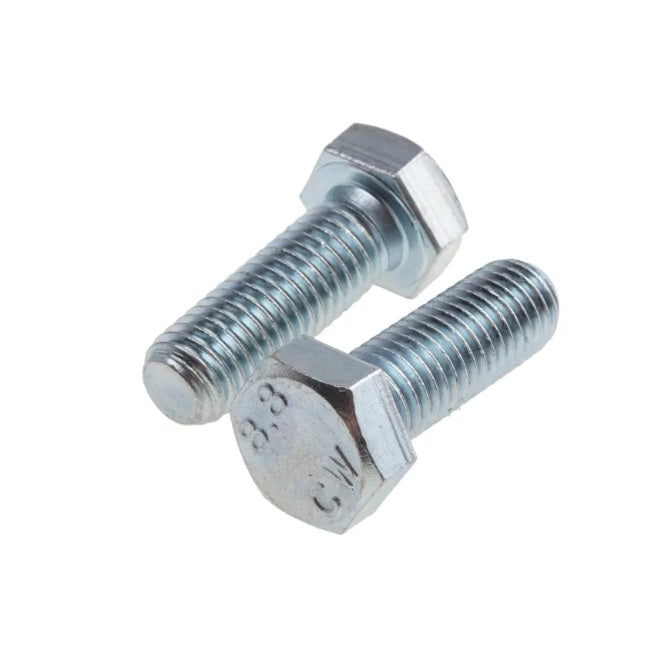

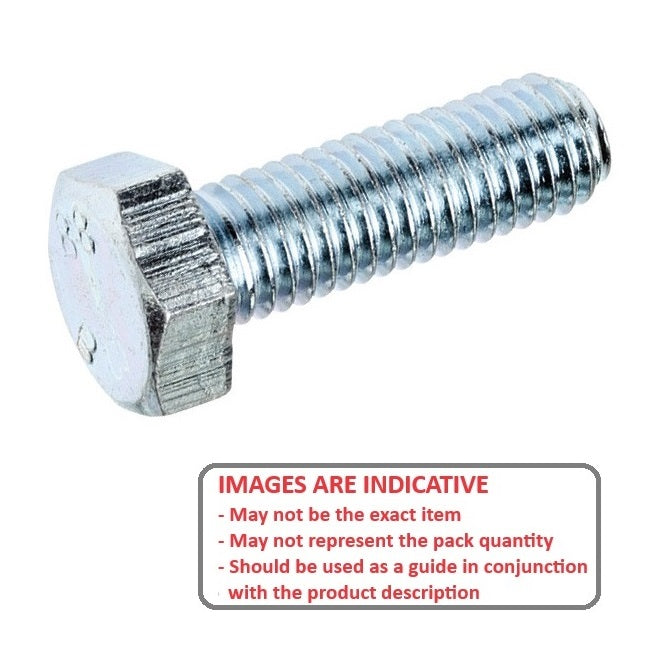

Screws - Hex Head - Full Thread - Steel Zinc PlatedSteel Zinc Plated Full Thread Hex Head Screws. BSW and METRIC - Set Screws
- An expanded range may be available on special order. Please enquire.
Product Data

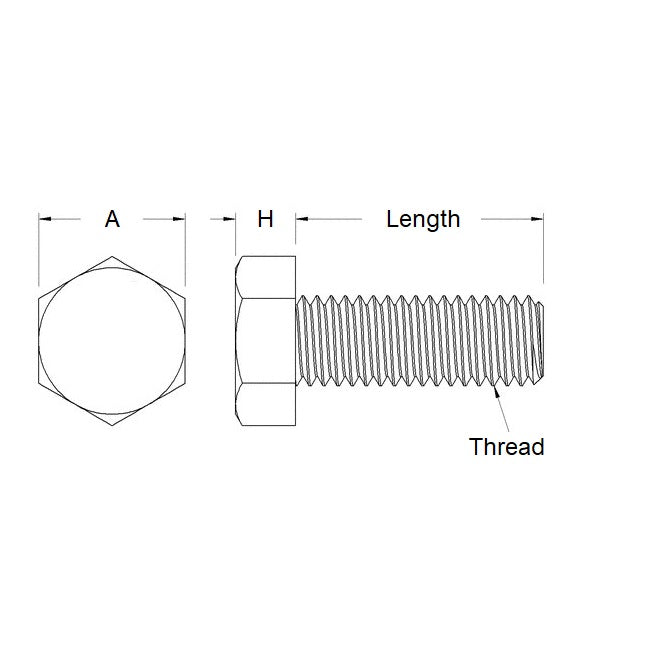

- Thread Size (C) : 3/8-16 BSW (9.53mm)
- Thread Length (L)
88.9
mm
(Equiv. 3.5 in.) - Material Zinc Plated Steel
- Max Head Diameter 14.28 mm
- Max Head Height 6.17 mm
- Type Set Screw - Full Thread
- Pitch 1.588 mm
- Threads Per Inch 16 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSHSZP38312
