NT095W-HX-CZ - Datasheet
MBA
Category Information

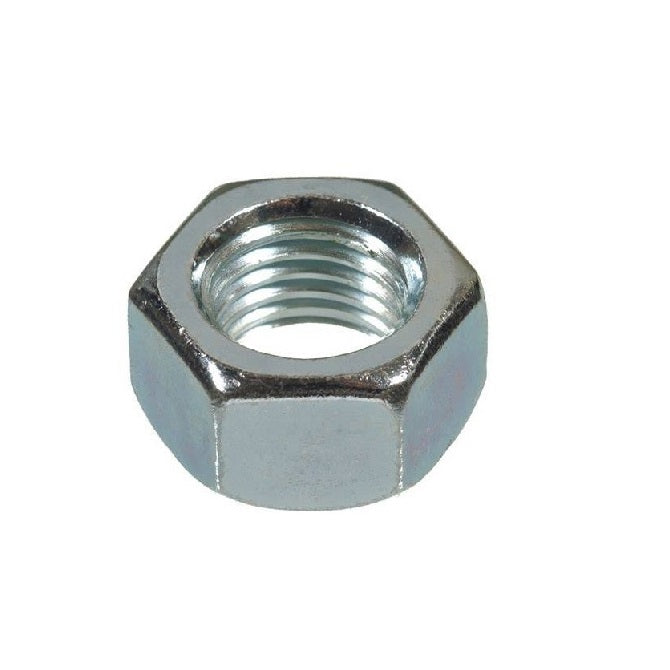

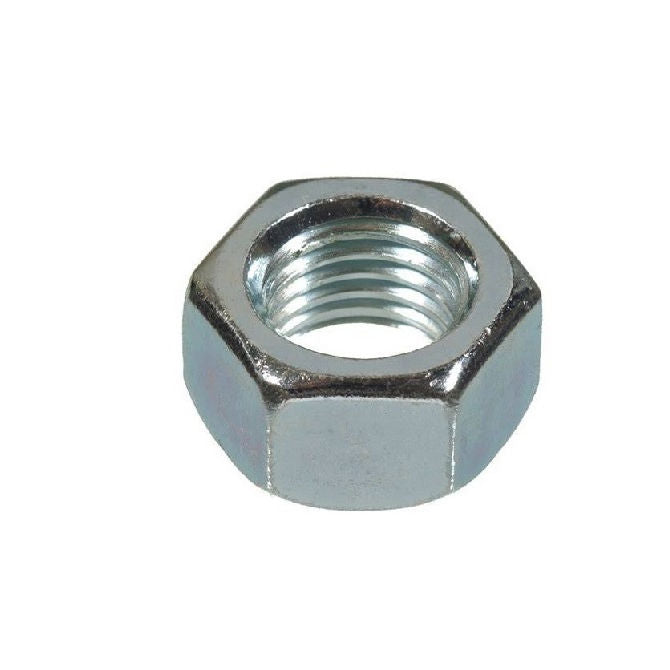

Nuts - Hexagonal - Full - SteelSteel Full Hexagonal Nuts. UNC - UNF - BA - METRIC. Plain and Zinc Plated.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 3/8-16 BSW (9.53mm)
- Thickness (H)
7.6
mm
(Equiv. 0.299 in.) - Across Flats (A/F)
15.00
mm
(Equiv. 0.591 in.) - Type Standard
- Pitch 1.588 mm
- Threads Per Inch 16 TPI
- Material Steel - Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Hitech MSHNZP38
