AR202RS - Datasheet

MBA

Category Information

Leadscrew - Nuts - Imperial - Acme - Bronze

Bronze Acme Imperial Nuts Leadscrew. Acme Leadscrew Nuts - Use with Acme Leadscrew thread and flanges for mounting

  • An expanded range may be available on special order. Please enquire.
  • Nut only. Match with appropriate leadscrew.

Product Data

  • Screw Outside Diameter : 9.525 mm
    (Equiv. 0.375 in.)
  • Number of Threads Per Inch 12
  • Number of Starts 1
  • Lead 2.1167 mm
  • External Nut Mounting Thread 9/16-18
  • Direction Right Hand
  • Overall Length 15.75 mm
  • Thread Length 9.65 mm
  • Nut Diameter 17.27 mm
  • Material Bronze
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • AR202
    • AR-202
    View full details

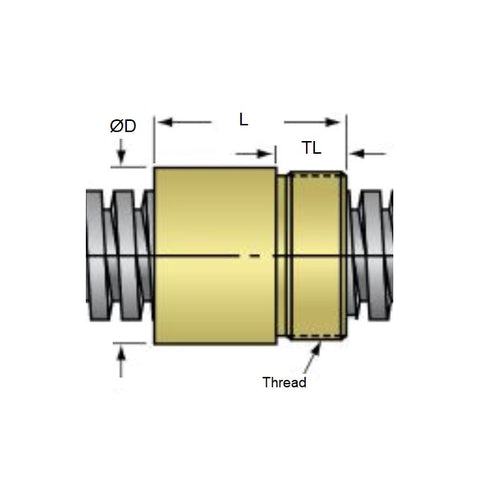

    AR202RSDiagramAR202RSImage
