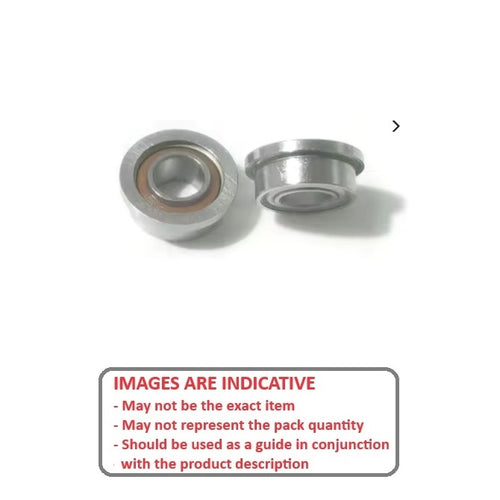

SFR144A-D27-ZSO-T9H-OPT - Datasheet
Myonic
Category Information
Bearings - Dental ApplicationsDental Applications Bearings. This listing shows the basic features of various bearings for dental applications.
- Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
- The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
- Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
- Please contact us for a dental application list.
Product Data

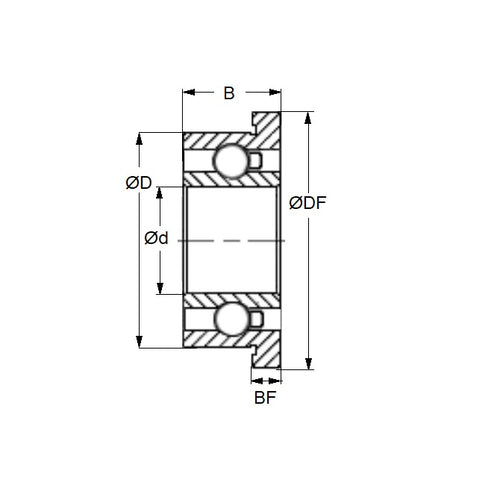

- ID (d)
:
3.175
mm
+ 0.000 / - 0.004
(Equiv. 0.125 in.) - O.D. (D)
6.350
mm
+ 0.000 / - 0.005
(Equiv. 0.25 in.) - Width (B)
2.779
mm
+ 0.000 / - 0.040
(Equiv. 0.109 in.) - Flange Diameter (DF) 7.518 mm
- Flange Width (BF) 0.787
- Precision Grade Abec 7 - Optimyn Germany Dental Special
- Closure Type ZS
- Bearing Type D27 Flanged Dental Special
- Lubricant Oil - Special
- Material Stainless Steel AISI 440C - High Speed Polyamide Cage
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- ABU® - 350000 RPM - Bearings
- ADEC® - 5000 - Bearings
- ADEC® - 5100 - Bearings
- Dabi Atlante - RS350 - Bearings
- DME - Aden - Bearings
- DME - True Speed - Bearings
- Faro - BTC77 - Bearings
- Impact-Air - High Speed Handpiece - Bearings
- Midwest - 400 - Bearing - Flanged
- Midwest - 400 - Chuck End Bearing
- Midwest - Quiet Air - Quiet Air Compact - Chuck End Bearing
- Midwest - Tradition - Bearings
- Midwest - Tru-Line - Chuck End Bearing
- NSK - Alpha Air and Lite - Bearings
- NSK - Alpha Light - Bearing for Rotor Cartridge
- NSK - NTF TU03 - Bearings
- NSK - Optica - Chuck End Bearing Check
- NSK - Pana Air Mini MU03 Red Band - Chuck End Bearing
- NSK - Phatelus - Bearing for Rotor Cartridge
- NSK - Phatelus II and III SU03 - TU03 - MU03 - Cap End Bearing
- NSK - Phatelus SU03 - TU03 - MU03 - Bearings
- NSK - Vip-Air - Bearings
- SS White - SS White - Cap End Bearing
Cross References
- KaVo 9A0050-832
- Generic Dental SG1376XST
- KaVo SG1376XST
- SFR144AD27ZSOT9HOPT
- SFR144AD27T9HZSOOPT
- SSFR144AD27T9HZSOOPT
- OPTIMYN418WIFPAISingle
- OPTIMYN-418WIF-PAI-Single
- OPTIMYN-418-WIF-PAI
- 9A0050832
