SFR144A-D27-ZSO-KC-OPT - Datasheet

Myonic

Category Information

Bearings - Dental Applications

Dental Applications Bearings. This listing shows the basic features of various bearings for dental applications.

  • Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
  • The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
  • Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
  • Please contact us for a dental application list.

Product Data

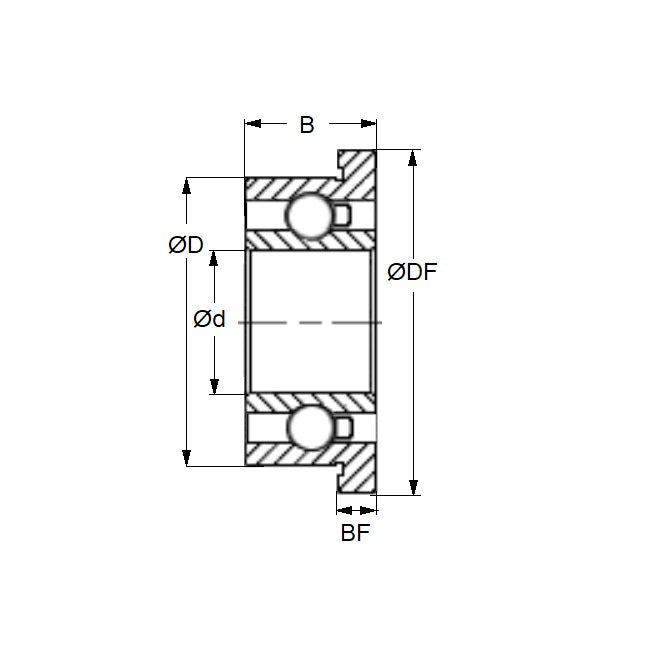

  • ID (d) : 3.175 mm + 0.000 / - 0.004
    (Equiv. 0.125 in.)
  • OD (D) 6.350 mm + 0.000 / - 0.005
    (Equiv. 0.25 in.)
  • Width (B) 2.779 mm + 0.000 / - 0.040
    (Equiv. 0.109 in.)
  • Flange Diameter (DF) 7.518 mm
  • Flange Width (BF) 0.787
  • Precision Grade Abec 7 - Optimyn Germany Dental Special
  • Closure Type ZS
  • Bearing Type D27 Flanged Dental Special
  • Lubricant Oil - Special
  • Material Stainless Steel AISI 440C - High Speed Phenolic Cage
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • OPTIMYN418 WIFPHE
  • OPTIMYN-418 WIF-PHE
View full details

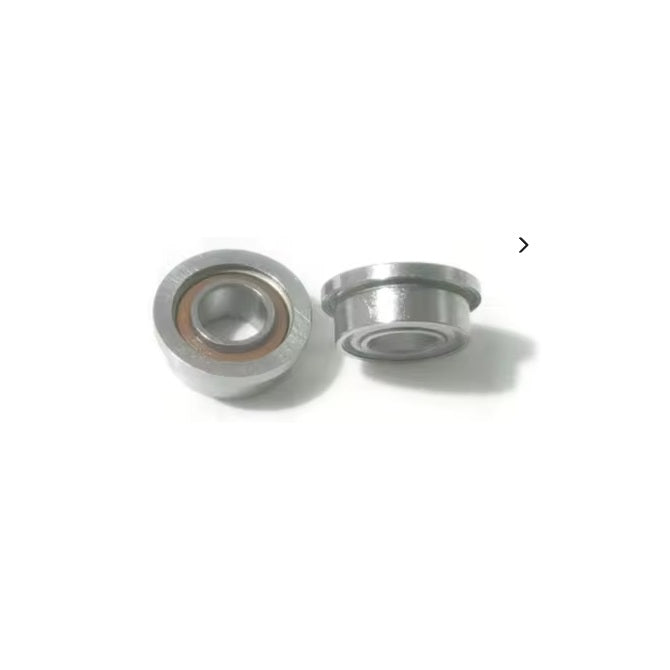

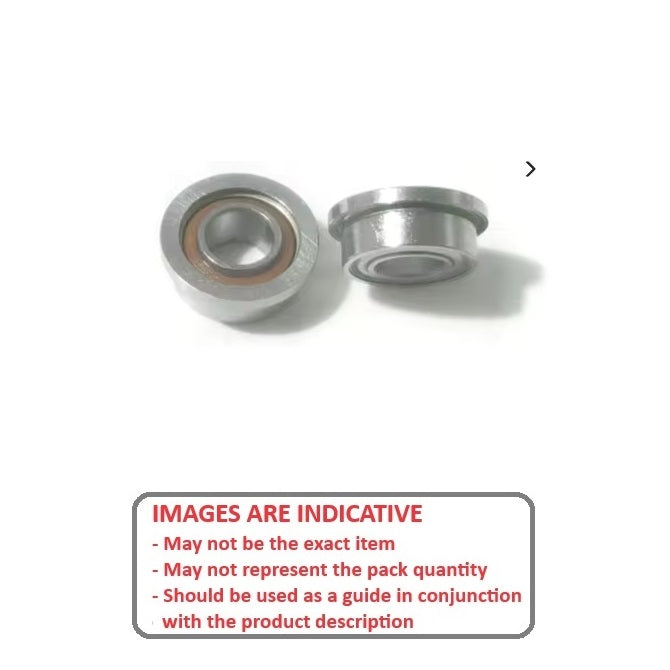

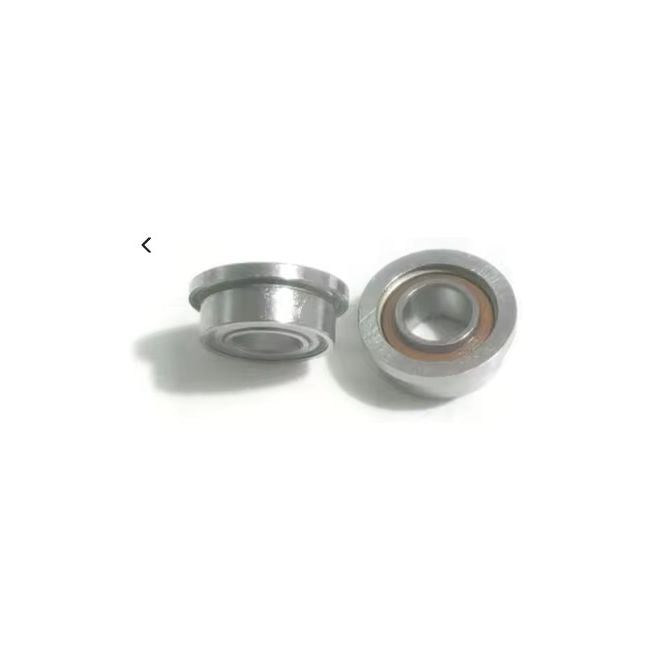

SFR144A-D27-ZSO-KC-OPTDiagramSFR144A-D27-ZSO-KC-OPTImage
