SR144-D28-CSN-T9H-OPT - Datasheet

MBA

Category Information

Bearings - Dental Applications

Dental Applications Bearings. This listing shows the basic features of various bearings for dental applications.

  • Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
  • The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
  • Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
  • Please contact us for a dental application list.

Product Data

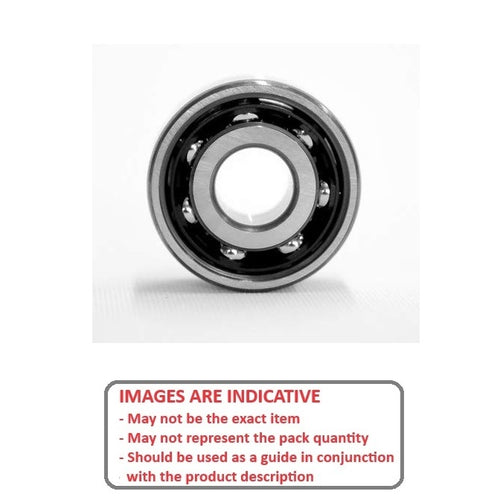

Precision dental handpiece bearing with high speed polyamide cage. Ceramic balls.

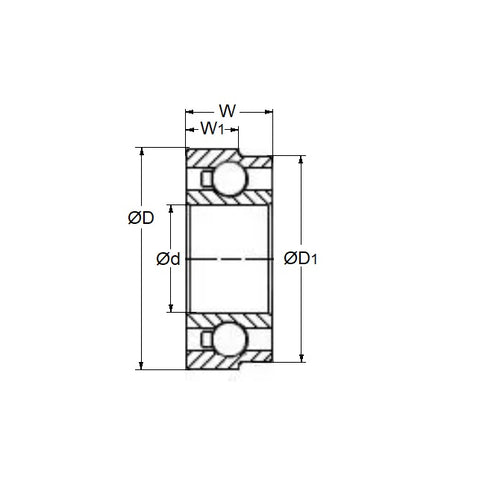

  • ID (d) : 3.175 mm + 0.000 / - 0.004
    (Equiv. 0.125 in.)
  • OD (D) 6.350 mm + 0.000 / - 0.005
    (Equiv. 0.25 in.)
  • Width (B) 2.381 mm + 0.000 / - 0.040
    (Equiv. 0.094 in.)
  • Precision Grade Abec 7
  • Closure Type Open
  • Bearing Type Radial
  • Lubricant Oil - Undisclosed
  • Material Stainless Steel AISI 440C
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • SR144CSND28T9HOPT
  • SSR144CSND28T9HOPT
