SCT0350-013-PLS-P-PH-CZ - Datasheet
MBA
Category Information

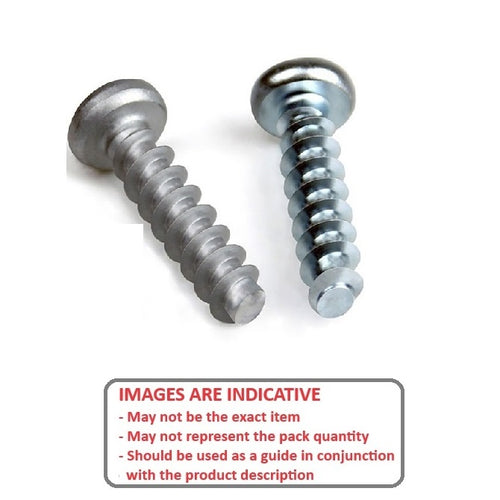

Screws - Self Tapping - Soft Plastics - Pan HeadPan Head Soft Plastics Self Tapping Screws. Tri-Lobe Course Thread Plastic Threading Screws
- Thread cutting screws for plastics
- Be sure to select correct screw for hard or soft plastic threadcutting
Product Data

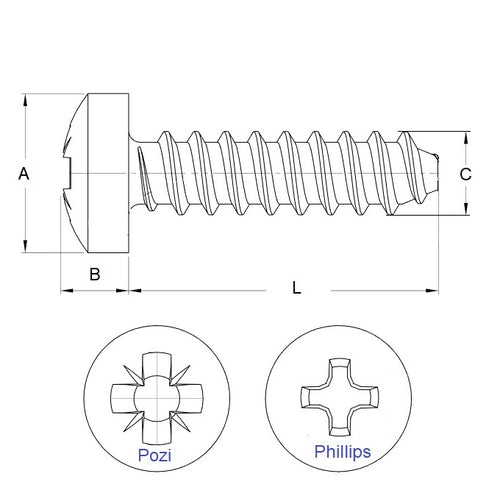

- Approx Diameter
:
3.5
mm
(Equiv. 0.138 in.) - Thread Length (L)
12.7
mm
(Equiv. 0.5 in.) - Gauge 6
- Drive Type Phillips
- Type Course Threadcutting For Soft Plastics
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90385A148
- MicroFast LPP0608
