W0035-CU-010-024-BNP - Datasheet
MBA
Category Information

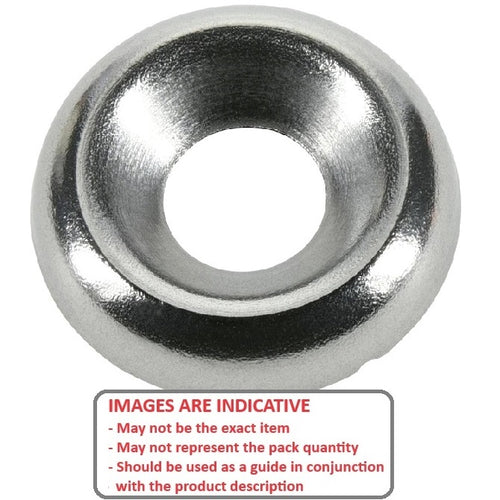

Washers - Cup - Brass - Nickel PlatedNickel Plated Brass Cup Washers. Nickel plated brass cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.
Product Data

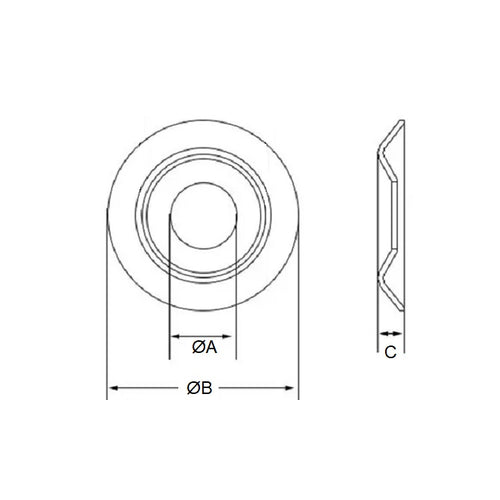

- Nominal Inside Diameter (A)
:
3.5
mm
(Equiv. 0.138 in.) - Nominal Outside Diameter (B)
10.30
mm
(Equiv. 0.406 in.) - Nom. Section (C)
2.40
mm
(Equiv. 0.094 in.) - Size 6 UNC / UNF
- Actual ID (Ref) 3.6 mm
- Material Brass Nickel Plated
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000493
- 92922A007
- WASCA WSCBNIPNO6
