TPC-025F-I-H - Datasheet
MBA
Category Information
Tools - Threading - Hand Taps - High Speed - Steel IndividualSteel Individual High Speed Hand Taps Threading Tools. High Speed Steel Short Machine Flute Taps. starting from M1 and 0-90 UNF. Many unusual sizes - M1.2, M1.4, M1.6, M1.7, BA Sizes, 2-56 and more. Sutton - PN - Bordo.
- An expanded range may be available on special order. Please enquire.
- High Speed Steel (HSS) Short Machine taps
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 3-56 UNF (2.52mm)
- Pitch in mm / Threads Per Inch 0.454 mm / 56 TPI

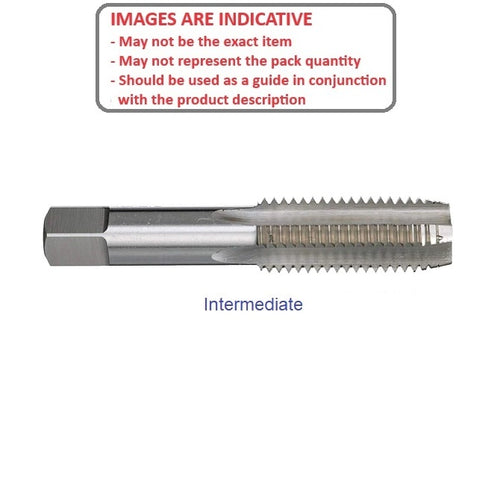

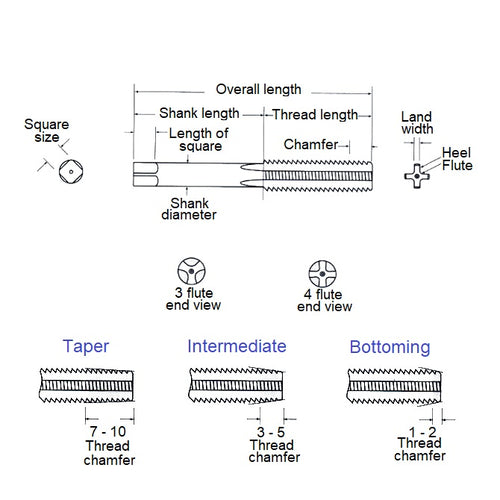

- Type Intermediate
- Drill Size Range 2.05 - 2.27 mm
- mm 2.24
- Material High Speed Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Sutton 033907
- 2522A774
- Small Parts HST-356
- HST356
