PSP-035-022H-C - Datasheet
MBA
Category Information

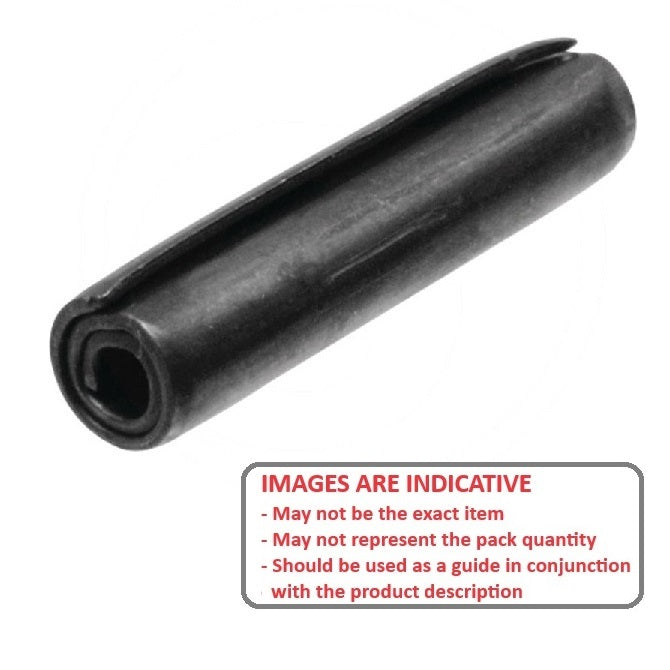

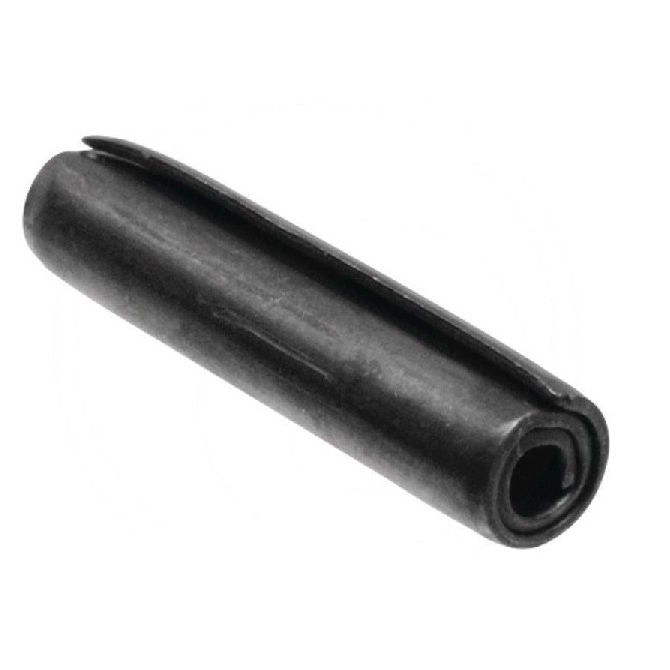

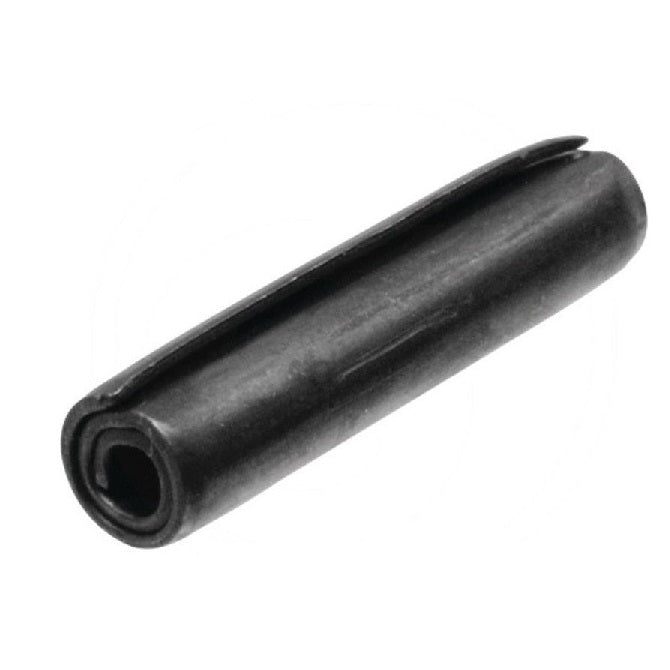

Pins - Coiled - Steel - Heavy DutyHeavy Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8748 Heavy Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
3.50
mm
(Equiv. 0.138 in.) - Length
22.00
mm
+/- 0.50
(Equiv. 0.866 in.) - Drill Size
3.50 - 3.62
mm
(Equiv. 0.138 in.) - Loose Diameter 3.67 - 3.84 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 7 Kn
- Material High Carbon Steel
