SC025C-013-B-SK-S4 - Datasheet
MBA
Category Information

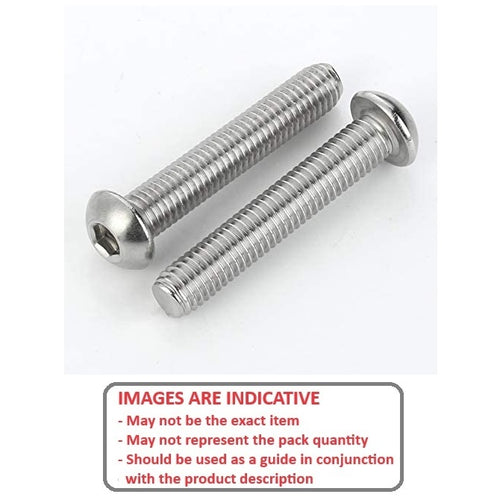

Screws - Button - Socket - Stainless - 304304 Stainless Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 3-48 UNC (2.52mm)
- Thread Length (L)
12.7
mm
(Equiv. 0.5 in.) - Material 304 Stainless
- Max Head Diameter 4.8 mm
- Max Head Height 1.3 mm
- Hex Key (D) 1.59 (1/16) mm
- Pitch 0.529 mm
- Threads Per Inch 48 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92949A900
- MicroFast SBS0308
