AR25RS - Datasheet

MBA

Category Information

Leadscrew - Length - Imperial - Acme - Alloy Steel

Alloy Steel Acme Imperial Length Leadscrew. Acme Leadscrew Thread - Use with Acme Supernuts

  • An expanded range may be available on special order. Please enquire.
  • Alloy steel heat treated to RC 56-60

Product Data

  • Outside Diameter : 19.050 mm
    (Equiv. 0.75 in.)
  • Number of Threads Per Inch 6
  • Number of Starts 1
  • Lead 4.2333 mm
  • Length 609.6 mm
  • Direction Right Hand
  • Material Steel Alloy
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 93410A150
    • AR25
    • AR-25
    View full details

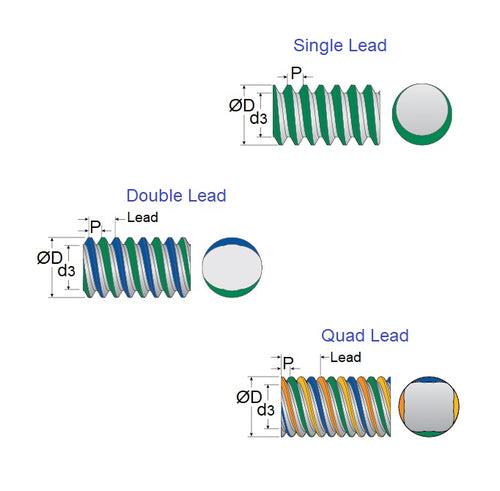

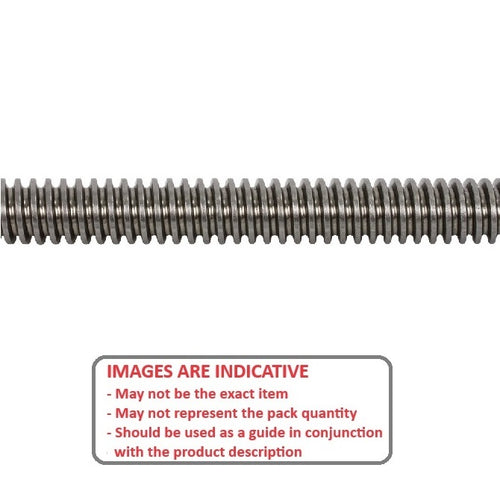

    AR25RSDiagramAR25RSImage
