EZL-191C-254C-198-C - Datasheet
MBA
Category Information

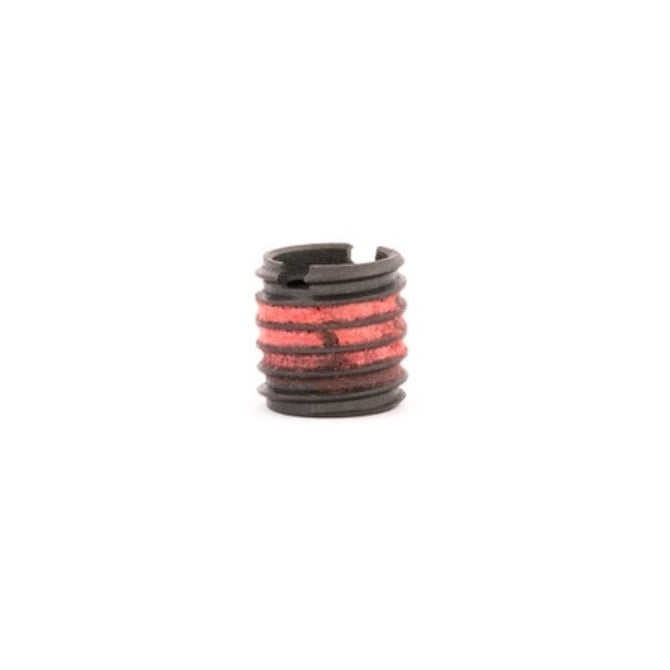

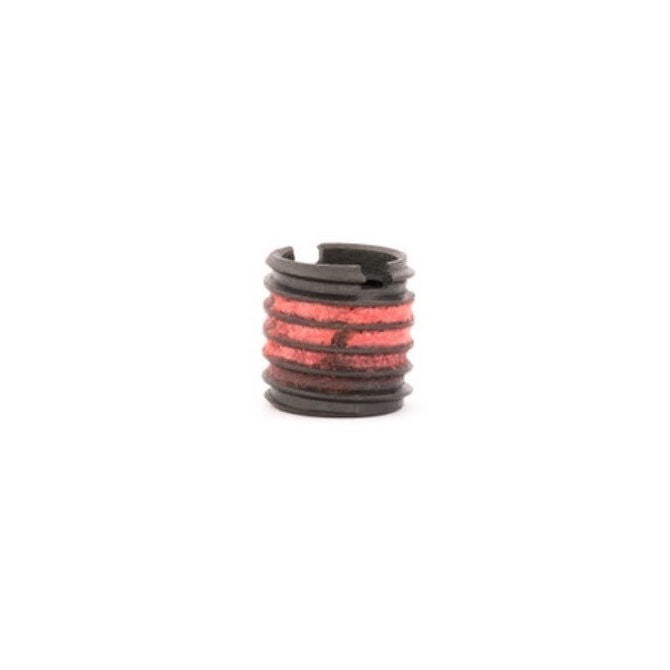

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF

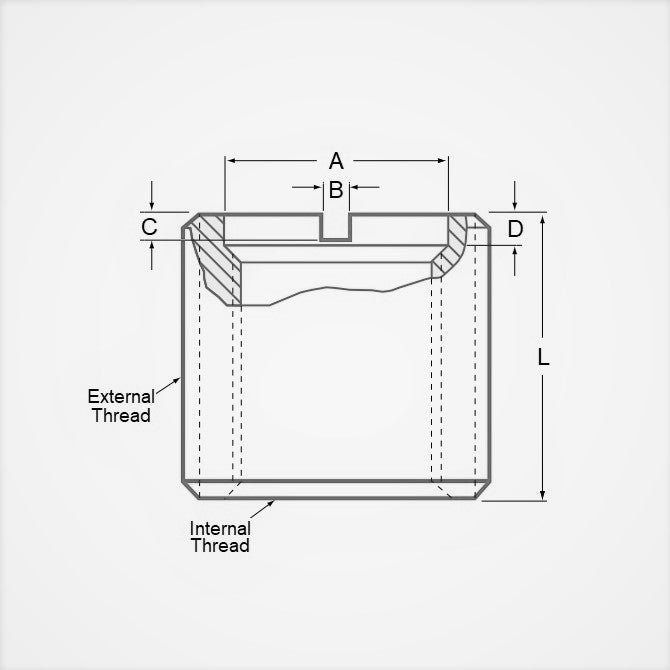

Product Data
- Internal Thread : 3/4-10 UNC (19.05mm)
- Length
19.84
mm
(Equiv. 0.781 in.) - External Tap Size 25.400mm (1-8 UNC)
- Tapping Hole Size 22.23 mm
- Drive Tool 500-9
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 329-12
- 90248A051
- 32912
