SC191C-076-SQ-C-DP - Datasheet
MBA
Category Information

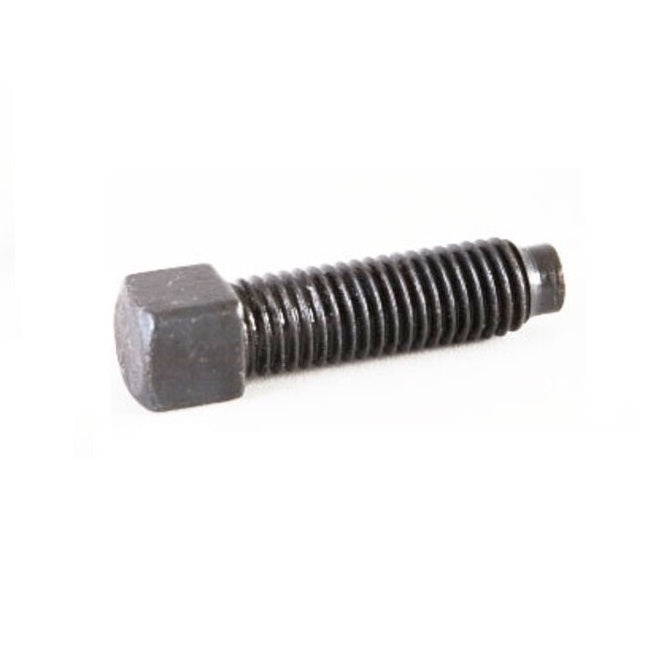

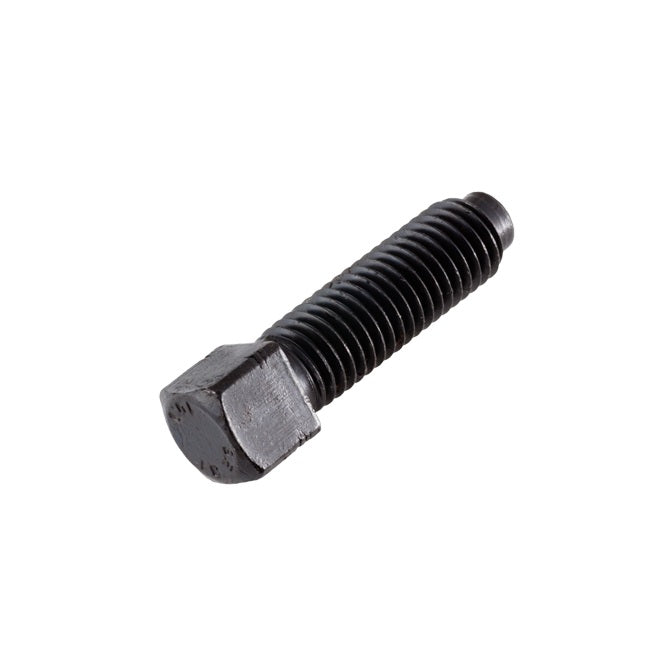

Screws - Set - Dog Point - Square HeadSquare Head Dog Point Set Screws. Grade 8 hreat treated alloy steel. All screws are threaded to the head.
Product Data
- Thread : 3/4-10 UNC (19.05mm)
- Thread Length (L) 76.200 mm
- Head Flats (A) 19.050 mm
- Head Height (B) 14.270 mm
- Tip Diameter (D) 14.270 mm
- Tip Height (E) 4.740 mm
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Reid Tool® MAC-435
- MAC435
