SC191C-076-SQ-C-CP - Datasheet
MBA
Category Information

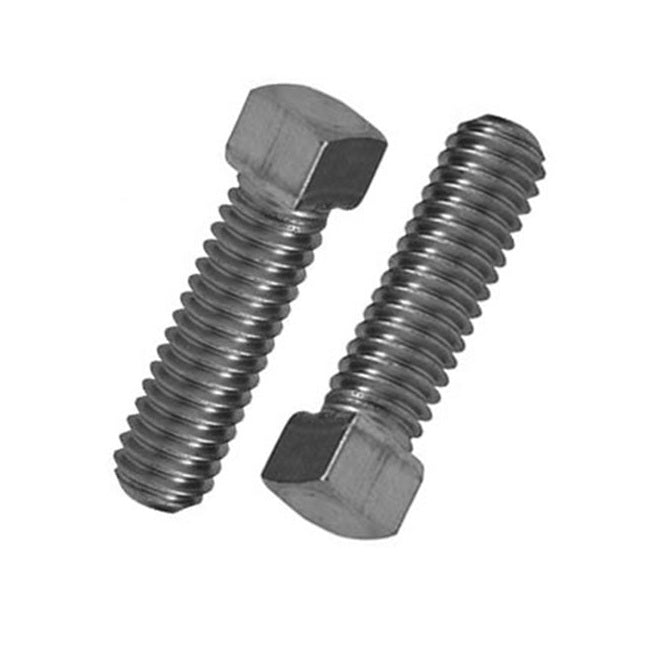

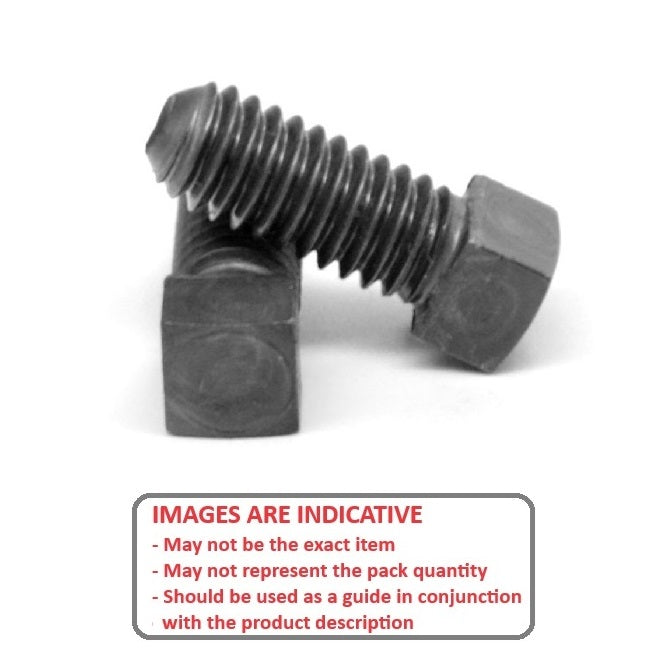

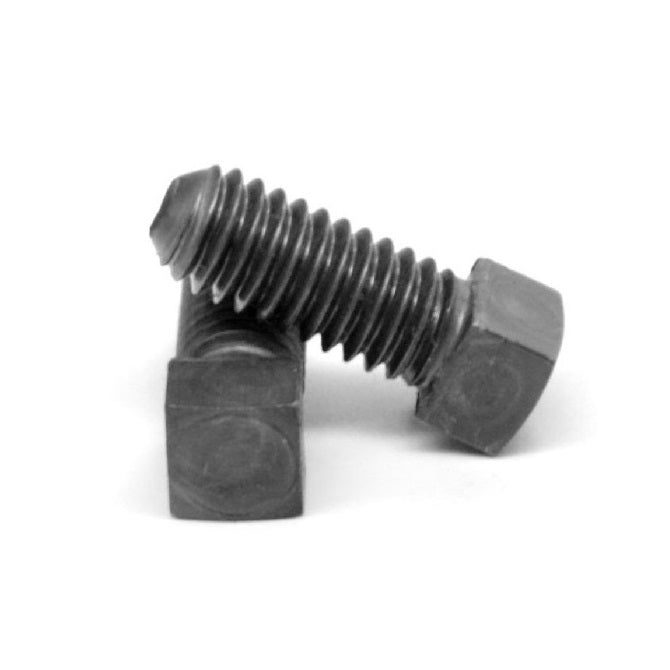

Screws - Set - Cup Point - Square HeadSquare Head Cup Point Set Screws. Grade 8 hreat treated alloy steel. All screws are threaded to the head.
Product Data

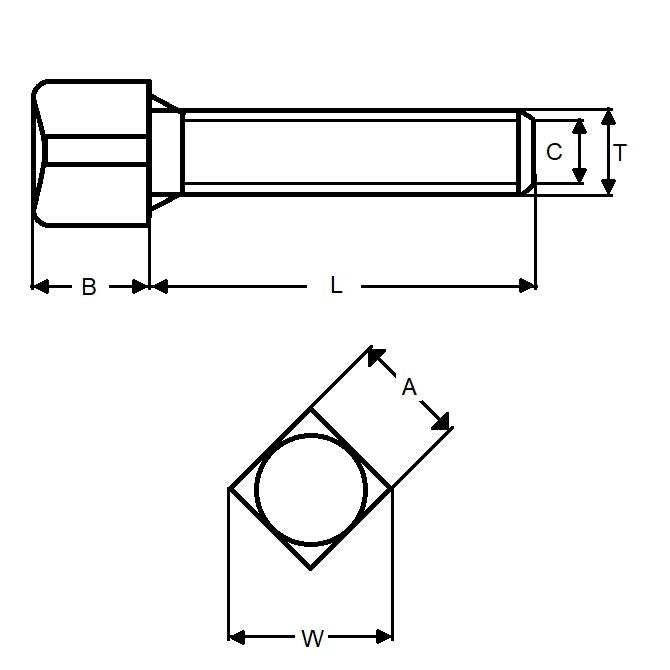

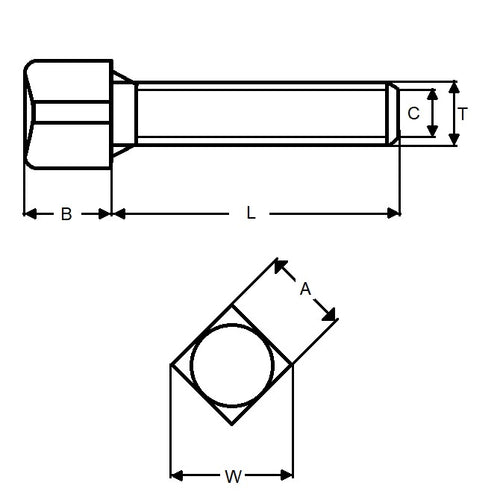

- Thread : 3/4-10 UNC (19.05mm)
- Thread Length (L)
76.200
mm
(Equiv. 3 in.) - Head Flats (A)
15.870
mm
(Equiv. 0.625 in.) - Head Height (B) 14.270 mm
- C 9.520 mm
Product Compliance and Data
