SC191C-038-C-SK-S6 - Datasheet
Brighton Best
Category Information

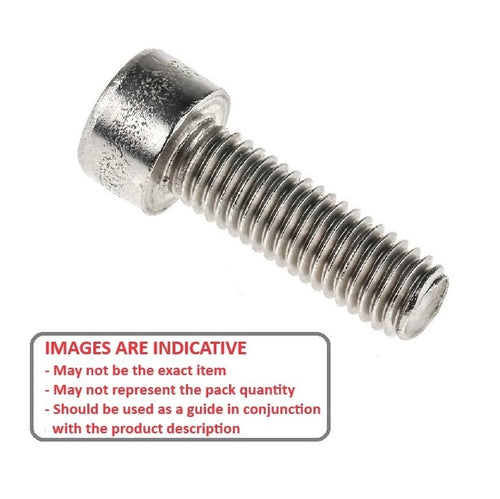

Screws - Socket Cap - Stainless - 316316 Stainless Socket Cap Screws. UNC - UNF - METRIC - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 3/4-10 UNC (19.05mm)
- Thread Length (L)
38.1
mm
(Equiv. 1.5 in.) - Material 316 Stainless
- Head Length (B Max.) 19.1 mm
- Head Diameter (A Max.) 28.6 mm
- Drive Depth (E) 9.40 mm
- Shank Diameter (C) 18.81 - 19.15 mm
- Hex Key (D) 15.88 (5/8) mm
- Pitch 2.54 mm
- Threads Per Inch 10 TPI
- Min thread Length 38.1 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 014167
- 92185A861
