Miniature Bearings Australia
AT191C-0300-NY - Datasheet
MBA
Category Information

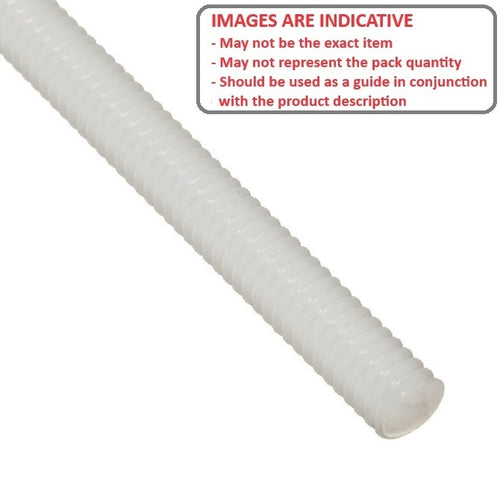

Threaded Rod - Allthread - PlasticPlastic Allthread Threaded Rod. Nylon and PVC. UNC - UNF - METRIC
- Allthread also known as threaded rod and booker rod is available in many different materials.
- Can be used in various applications for hanging, stabilizing, mounting, and fastening. They are often cut to specific lengths and used with nuts and other fittings to create custom-length bolts or anchors.
- Light Weight.
- Non Corrosive.
- Vibration Resistant.
Product Data
- Thread Size : 3/4-10 UNC (19.05mm)
- Pitch in mm / Threads Per Inch 2.540 mm / 10 TPI
- Length
300
mm
(Equiv. 11.811 in.) - Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- 98831A120
- A9M607510
- A9M60-7510
