SC191C-127-SQ-C-CP - Datasheet
MBA
Category Information

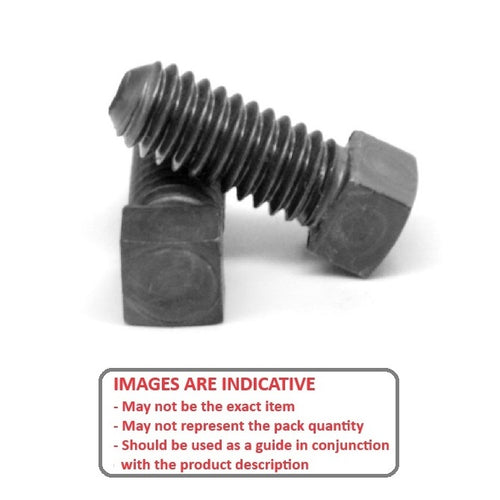

Screws - Set - Cup Point - Square HeadSquare Head Cup Point Set Screws. Grade 8 hreat treated alloy steel. All screws are threaded to the head.
Product Data

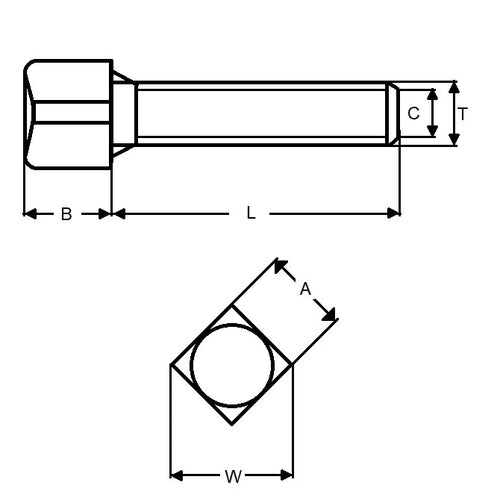

- Thread : 3/4-10 UNC (19.05mm)
- Thread Length (L)
127.000
mm
(Equiv. 5 in.) - Head Flats (A)
15.870
mm
(Equiv. 0.625 in.) - Head Height (B) 14.270 mm
- C 9.520 mm
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MAC-230
- MAC230
