EB-310RS - Datasheet

MBA

Category Information

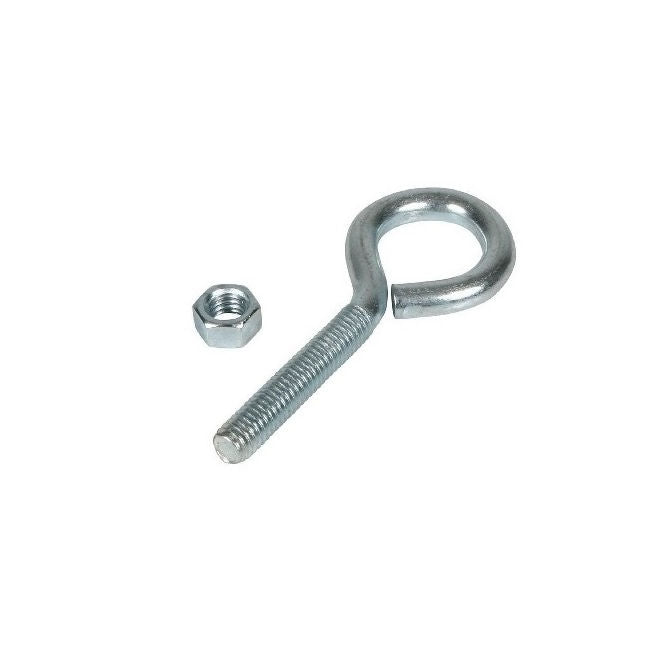

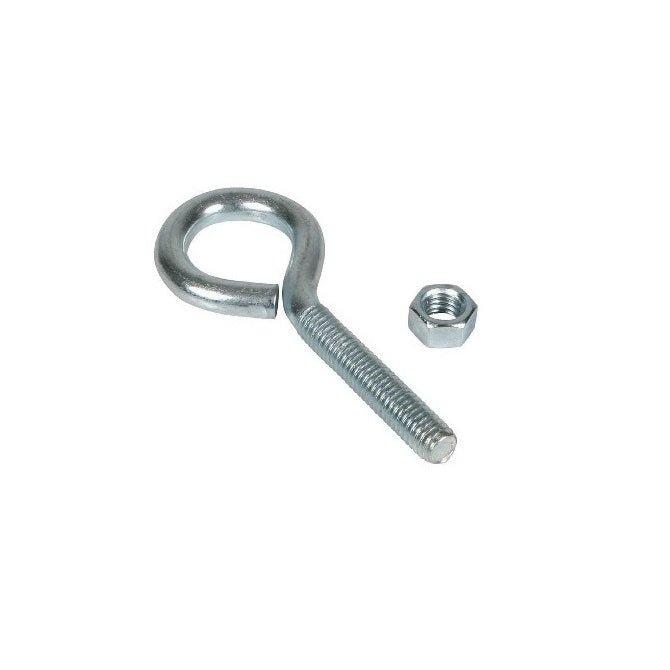

Eye Bolts - Bent - Steel

Steel Bent Eye Bolts. Not recommended for lifting.

  • Carbon steel zinc plated.
  • Complete with nut.
  • Rolled threads.

Product Data

  • Thread : 3/4-10 UNC (19.05mm)
  • Overall Length 177.800 mm
    (Equiv. 7 in.)
  • Shank Length 44.450 mm
    (Equiv. 1.75 in.)
  • Thread Length 19.050 mm
  • Eye Inside Diameter 15.875 mm
Country of Origin: US
