CHE-33RS - Datasheet
MBA
Category Information

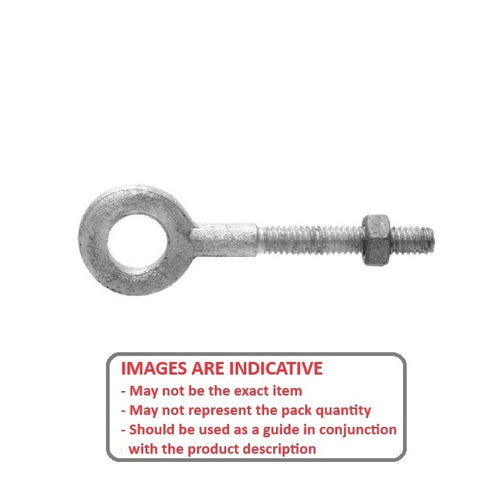

Eye Bolts - Partial Threaded Shank - Plain - Carbon SteelCarbon Steel Plain Partial Threaded Shank Eye Bolts. Hot galvanised finished steel with machine thread.
- Fastener with a loop or eye at one end, and a partial threaded shank on the other.
- Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
- Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.
Product Data

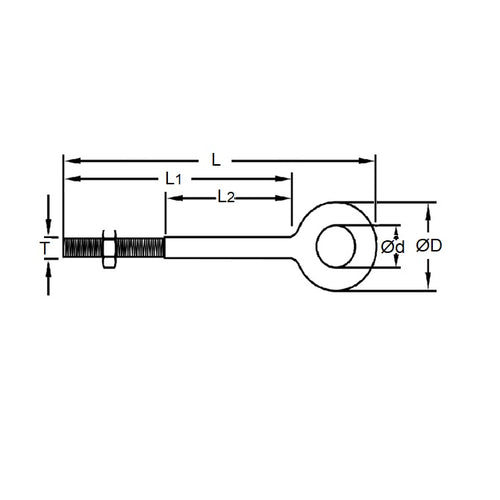

- Thread Size : 3/4-10 UNC (19.05mm)
- Shank Length
152.400
mm
(Equiv. 6 in.) - Eye Inside Diameter
38.100
mm
(Equiv. 1.5 in.) - Rated Capacity 2359 Kg
Product Compliance and Data
Additional Resources
Cross References
- 3016T63
