CHE-82RS - Datasheet
MBA
Category Information

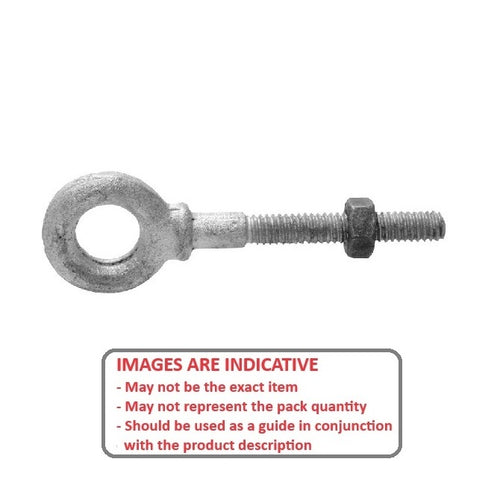

Eye Bolts - Partial Threaded Shank - Shouldered - Carbon SteelCarbon Steel Shouldered Partial Threaded Shank Eye Bolts. Hot galvanised finished steel with machine thread.
- Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.

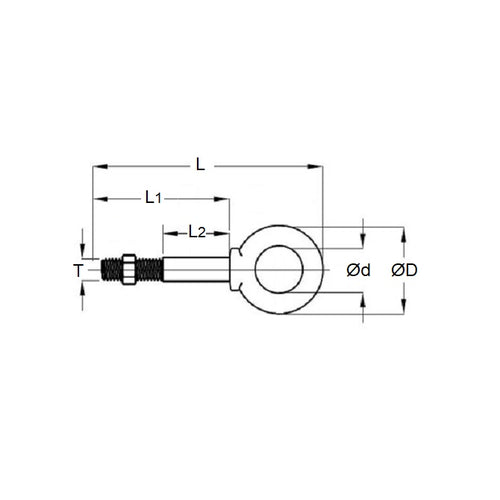

Product Data
- Thread Size : 3/4-10 UNC (19.05mm)
- Shank Length
114.300
mm
(Equiv. 4.5 in.) - Eye Inside Diameter
38.100
mm
(Equiv. 1.5 in.) - Rated Capacity 2359 Kg
Product Compliance and Data
Additional Resources
Cross References
- 3018T19
