K-0300-0300-1200AB-C - Datasheet
ExaktKey
Category Information

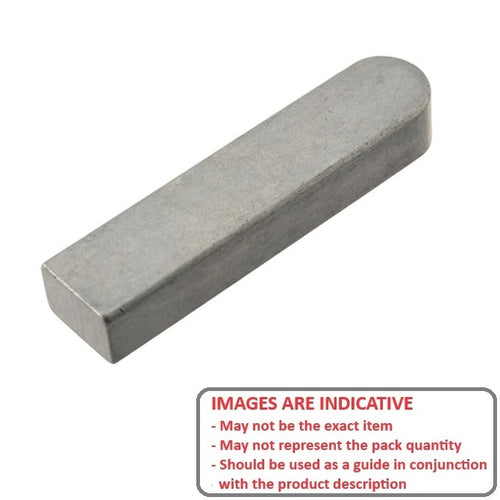

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

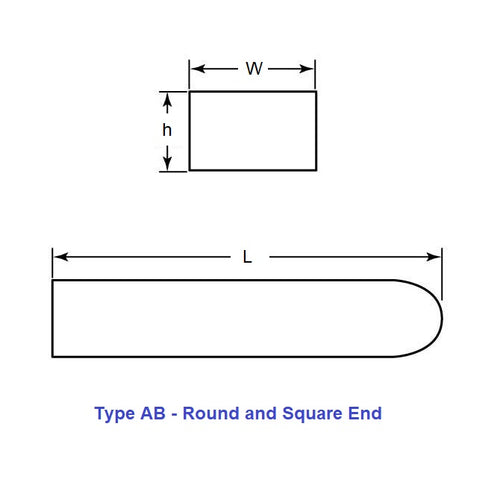

- Width (W)
:
3.00
mm
(Equiv. 0.118 in.) - Height (h)
3.00
mm
(Equiv. 0.118 in.) - Length (L)
12.00
mm
(Equiv. 0.472 in.) - Finish Plain
- Tolerance Type Standard
- End Type AB (1 end rounded, other end square)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- K030003001200CC
