PUI032-0460-050-A-BB - Datasheet
MBA
Category Information

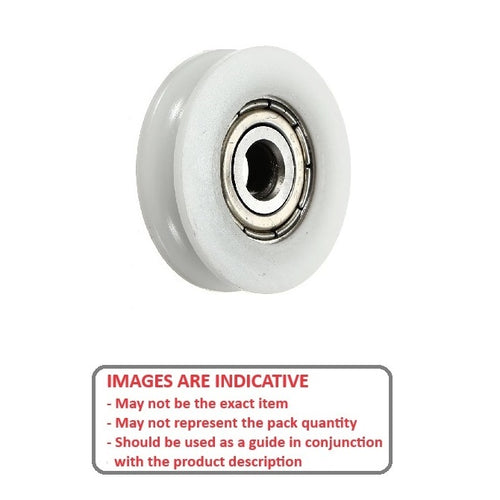

Pulleys - U Groove Idler - Single Row - Plastic With BearingPlastic With Bearing Single Row U Groove Idler Pulleys. Plastic and Steel with Steel Ball Bearings or Plain Bearings.
- Use with round belts such as Rounthane or O-Rings
Product Data

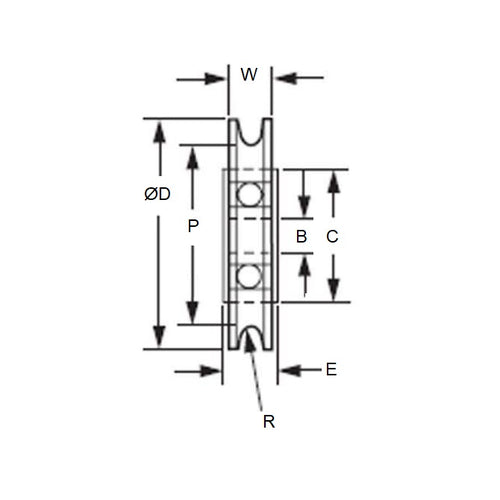

- Maximum Cable Diameter (H)
:
3.2
mm
+ 0.127 / - 0.000
(Equiv. 0.126 in.) - Outside Diameter (OD)
46.000
mm
(Equiv. 1.811 in.) - Bore (B)
5.000
mm
(Equiv. 0.197 in.) - Overall Width (OAL) 9.00
- Dia. to Base of Groove (P) 29.2 mm
- Type Ball Baering - Precision Ground 635 - Heavy Duty
- Groove Radius (R) 1.00
- Material Acetal
