PC032-0400-Z - Datasheet
MBA
Category Information

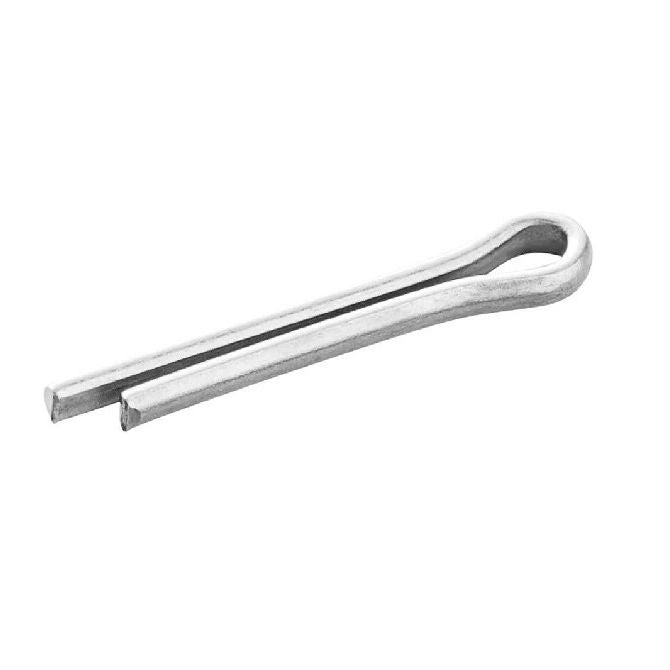

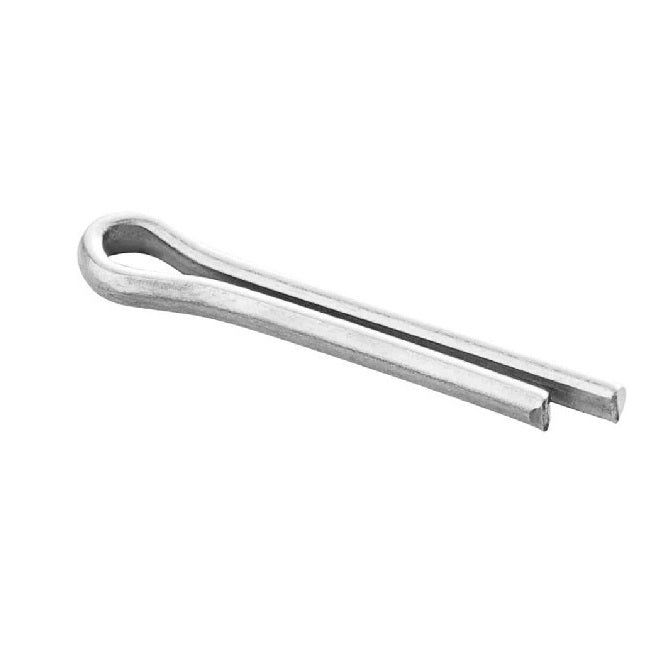

Pins - Split - Zinc PlatedZinc Plated Split Pins. Longer lengths may be cut back to a suitable length.
- An expanded range may be available on special order. Please enquire.
- Hole size indicated is maximum for the pin to be effective.
- If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.
Product Data
- Maximum Hole Diameter
:
3.2
mm
(Equiv. 0.126 in.) - Nom. Pin Length (L)
40.0
mm
(Equiv. 1.575 in.) - Nom. Pin Diameter (D)
2.9
mm
(Equiv. 0.114 in.) - Nom. Overall Length 48 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1006507
- 98350A290
