CS-0318-5080-03-S1 - Datasheet
MBA
Category Information

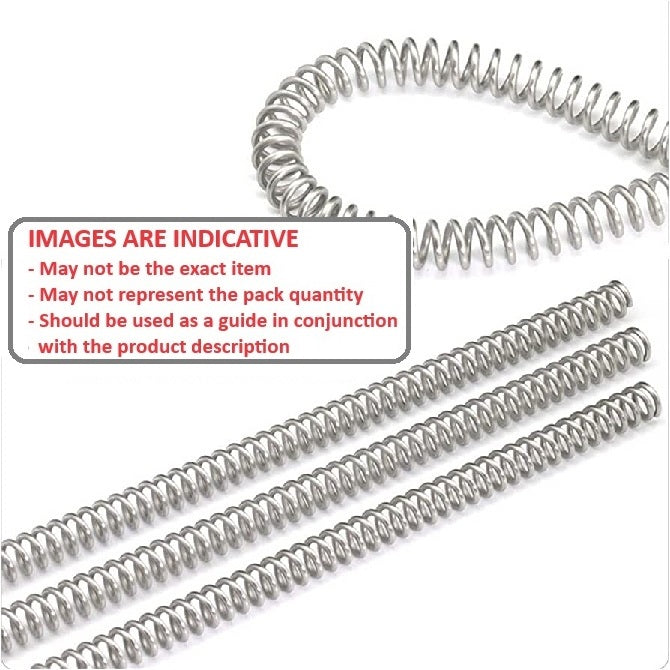

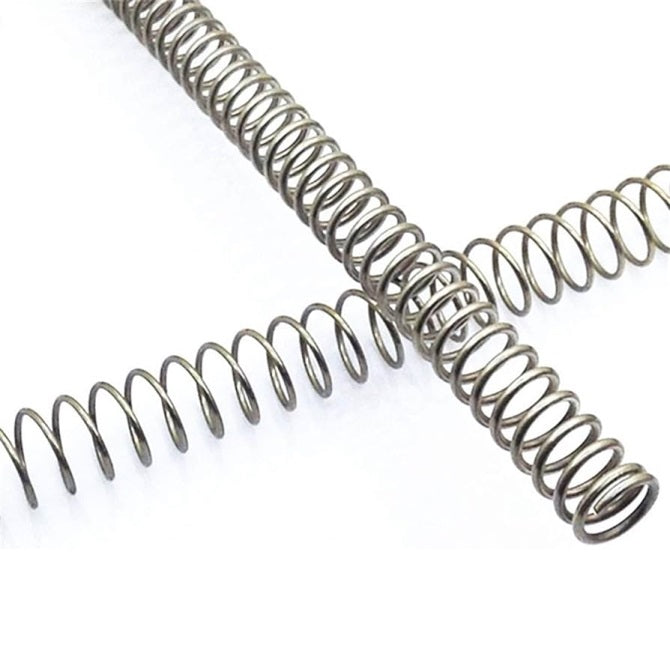

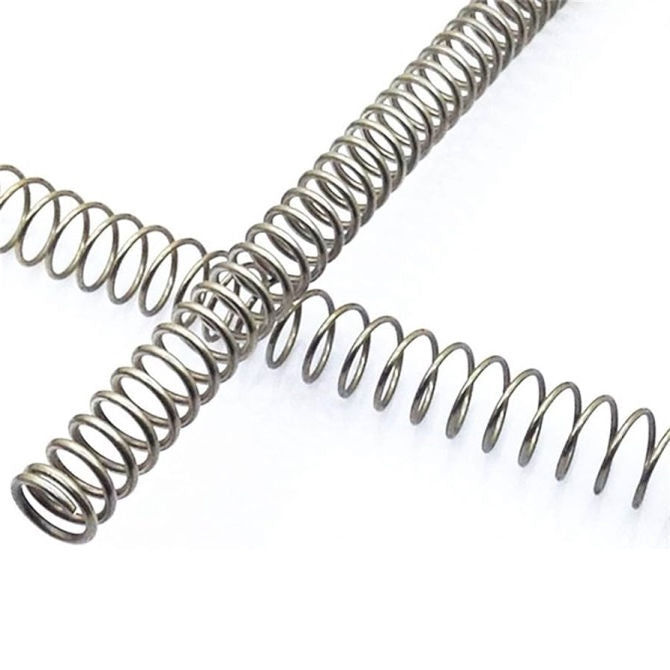

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.

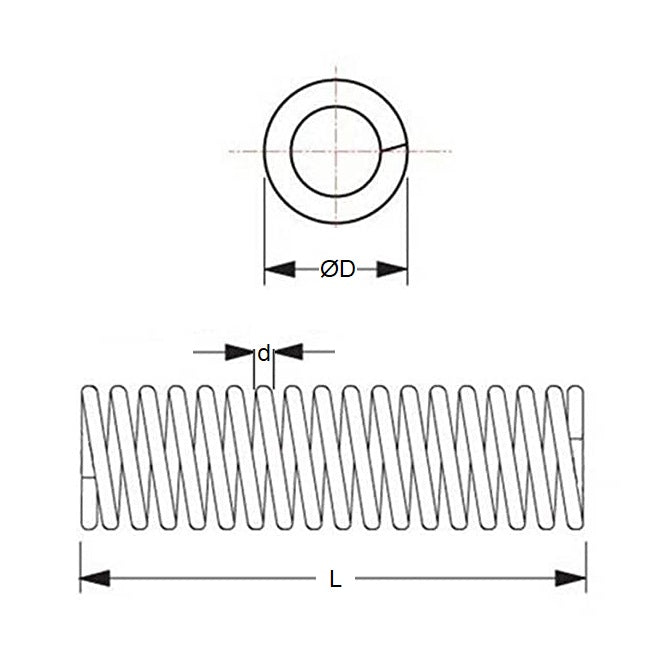

Product Data
- Spring OD (D0)
:
3.18
mm
(Equiv. 0.125 in.) - Free Length (L0)
508
mm
(Equiv. 20 in.) - Wire Diameter (d)
0.33
mm
(Equiv. 0.013 in.) - Rate (P/f) 0.2 N/mm
- Approx. ID 2.5 mm
- End Type Closed
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 9663K11
- SSS201
- SSS-201
