PUI032-0445-065-A - Datasheet
MBA
Category Information

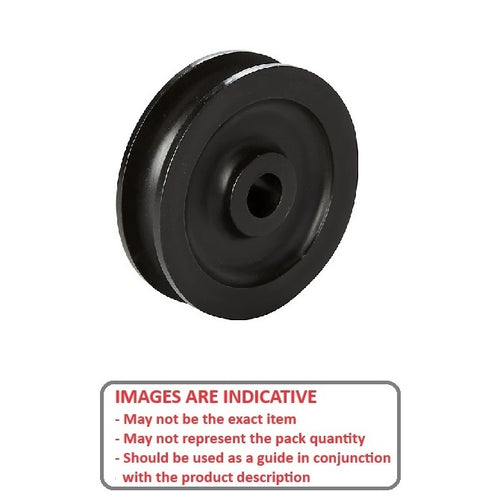

Pulleys - U Groove Idler - Single Row - Plastic With Plain BorePlastic With Plain Bore Single Row U Groove Idler Pulleys. Plastic and Steel with Steel Ball Bearings or Plain Bearings.
- Use with round belts such as Rounthane or O-Rings
Product Data

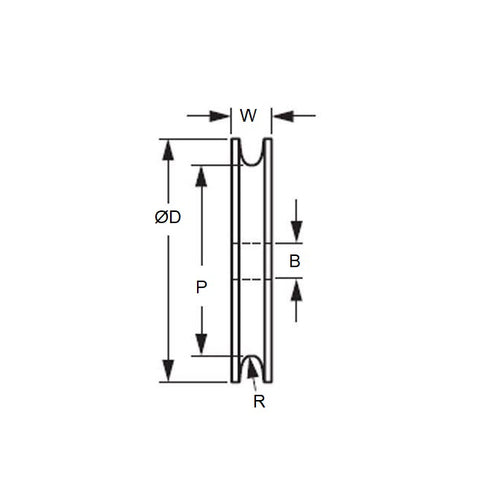

- Maximum Cable Diameter (H)
:
3.18
mm
+/- 0.127
(Equiv. 0.125 in.) - Outside Diameter (OD)
44.45
mm
(Equiv. 1.75 in.) - Bore (B)
6.452
mm
(Equiv. 0.254 in.) - Overall Width (OAL) 7.137
- Dia. to Base of Groove (P) 34.93 mm
- Type Plain Bearing - Light Duty
- Groove Radius (R) 1.68
- Material Acetal - Black
Product Compliance and Data
Additional Resources
Cross References
- 3434T37
- A6M9-02808
- A6M902808
- CBL870
- CBL-870
