PSP-032-038H-C - Datasheet
MBA
Category Information

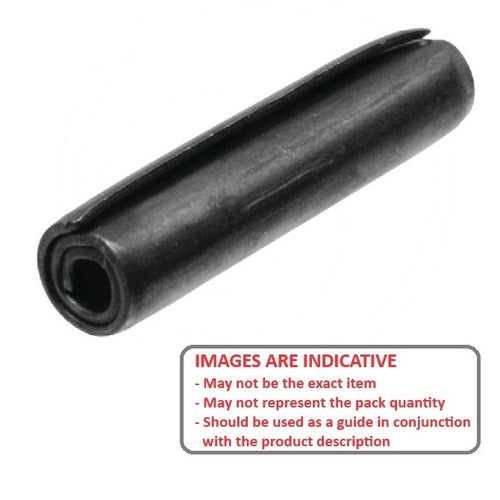

Pins - Coiled - Steel - Heavy DutyHeavy Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8748 Heavy Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
3.18
mm
(Equiv. 0.125 in.) - Length
38.10
mm
+/- 0.50
(Equiv. 1.5 in.) - Drill Size
3.18 - 3.28
mm
(Equiv. 0.125 in.) - Loose Diameter 3.30 - 3.45 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness RC 46-53 (HV 420 to 545)
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 95755A246
- NoCor SPC-125-1500H
- SPC1251500H
