PSP-032-038-C - Datasheet
MBA
Category Information

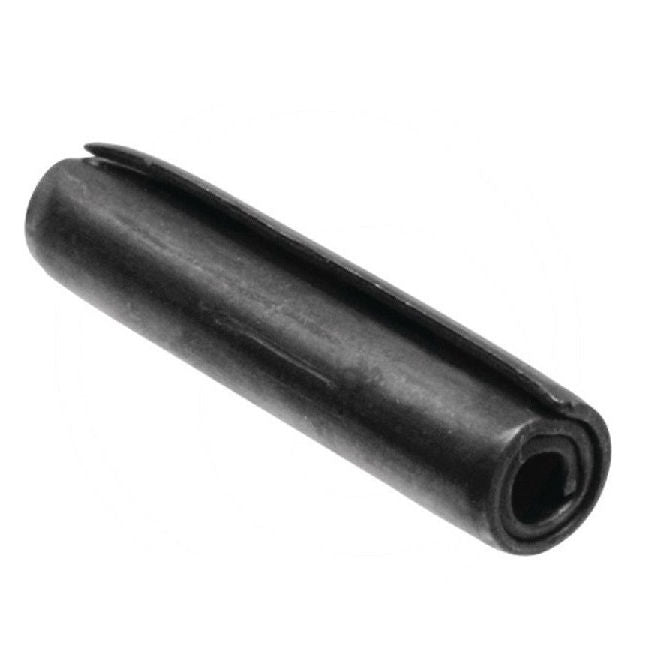

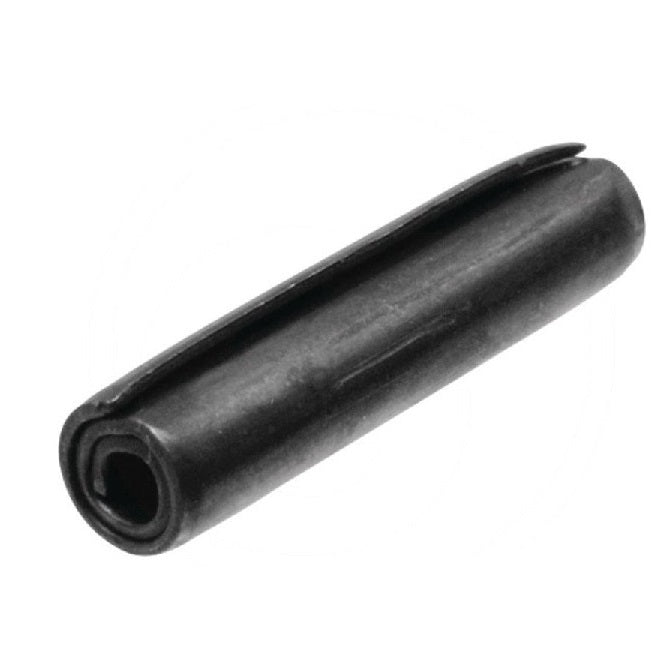

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
3.18
mm
(Equiv. 0.125 in.) - Length
38.10
mm
+/- 0.50
(Equiv. 1.5 in.) - Drill Size
3.18 - 3.28
mm
(Equiv. 0.125 in.) - Loose Diameter 3.33 - 3.51 mm
- ISO Standard Duty ASME B18.8.2
- Hardness RC 46-53 (HV 420 to 545)
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 91598A264
- NoCor SPC-125-1500
- A9Q360448
- A9Q36-0448
- SPC1251500
