CBLU-318-304-77 - Datasheet
MBA
Category Information

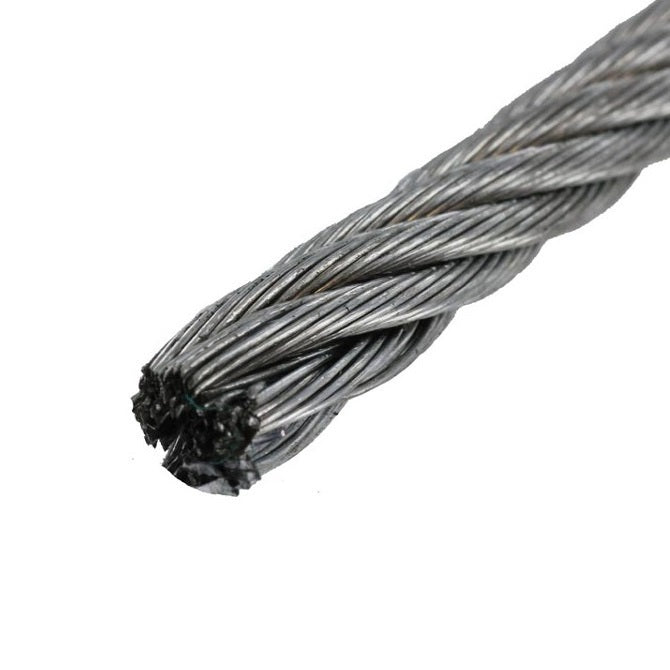

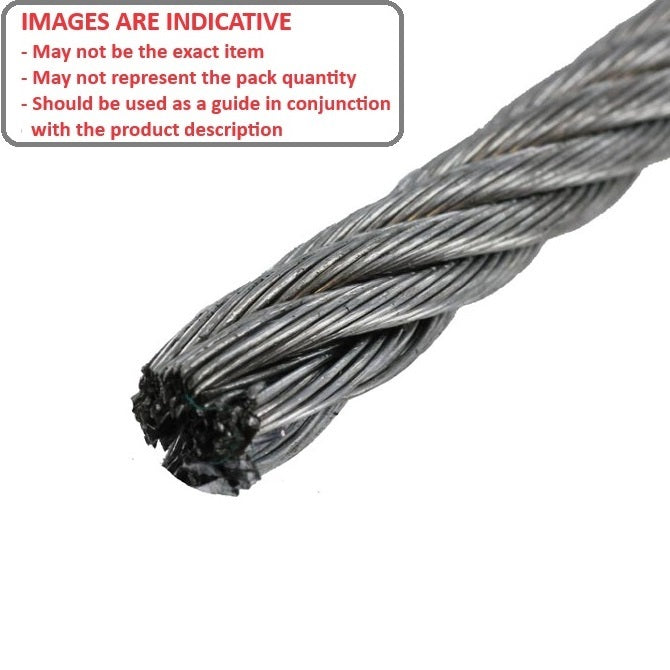

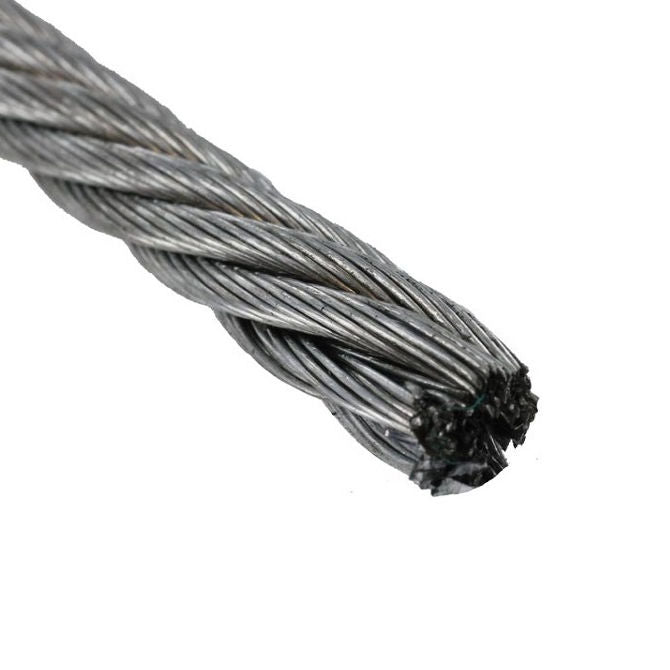

Cable and Accessories - Cable - Miniature - UncoatedUncoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)
- An expanded range may be available on special order. Please enquire.
- Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
- Also called bowden cable.
Product Data
- Overall Diameter
:
3.18
mm
(Equiv. 0.125 in.) - Cable Diameter (A)
3.175
mm
(Equiv. 0.125 in.) - Breaking Strength 771.1 kg
- Length 30 Mtr Roll
- Strand Type 7x7
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 3461T46
- CBL50
- CBL-50
