ES-0318-2794-04-M - Datasheet

MBA

Category Information

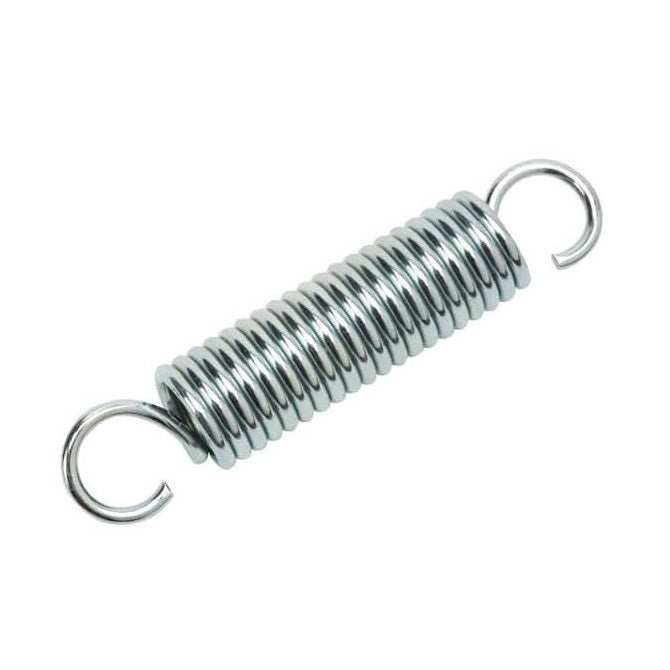

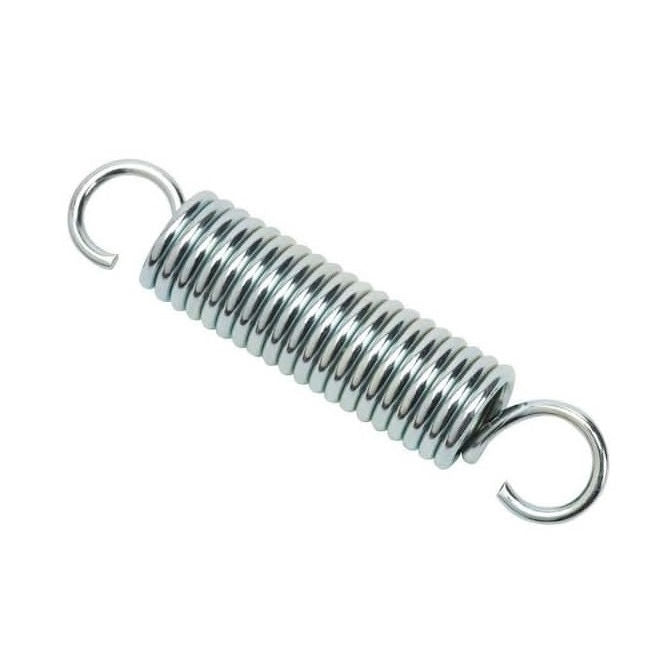

Springs - Extension - Music Wire

Music Wire Extension Springs. Carbon spring steel, zinc plated selection.

  • Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
  • Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
  • This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
  • Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).

Product Data

  • OD (D0) : 3.18 mm
    (Equiv. 0.125 in.)
  • Overall Length (L0) 279.4 mm
    (Equiv. 11 in.)
  • Wire Diameter (d) 0.41 mm
    (Equiv. 0.016 in.)
  • Spring Rate 0.02 N/mm
  • Initial Tension (IT) 0.0 N
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • ES57
  • ES-57
